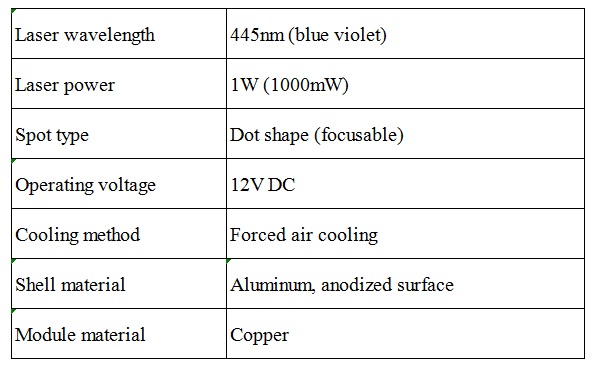

Description
- Certification: CE
- Origin: CN(Origin)
- Model Number: 1000mw-3P
- Laser Power: 1000mW
- Wavelength: 445nm
- Input Voltage: DC 12V
- Beam Shape: Dot (Focusable)
- Input Interface: XH2.54-3P

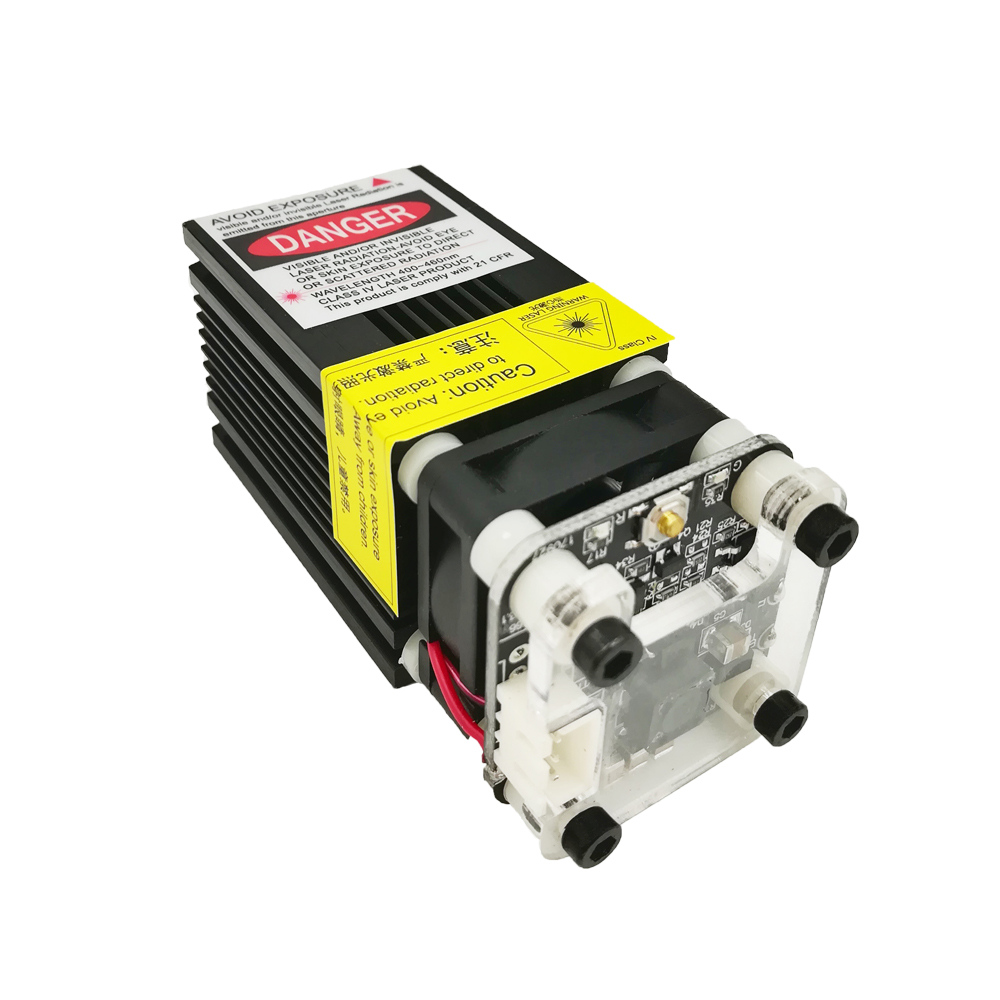

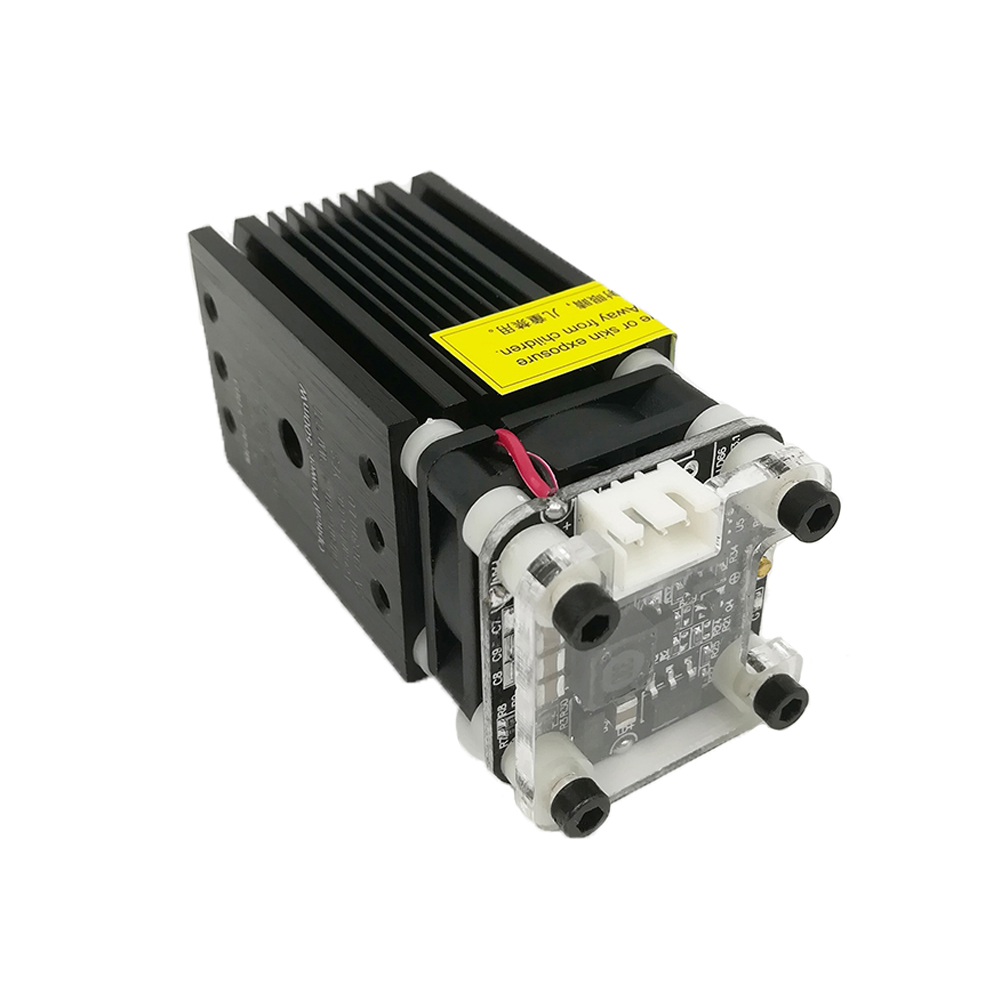

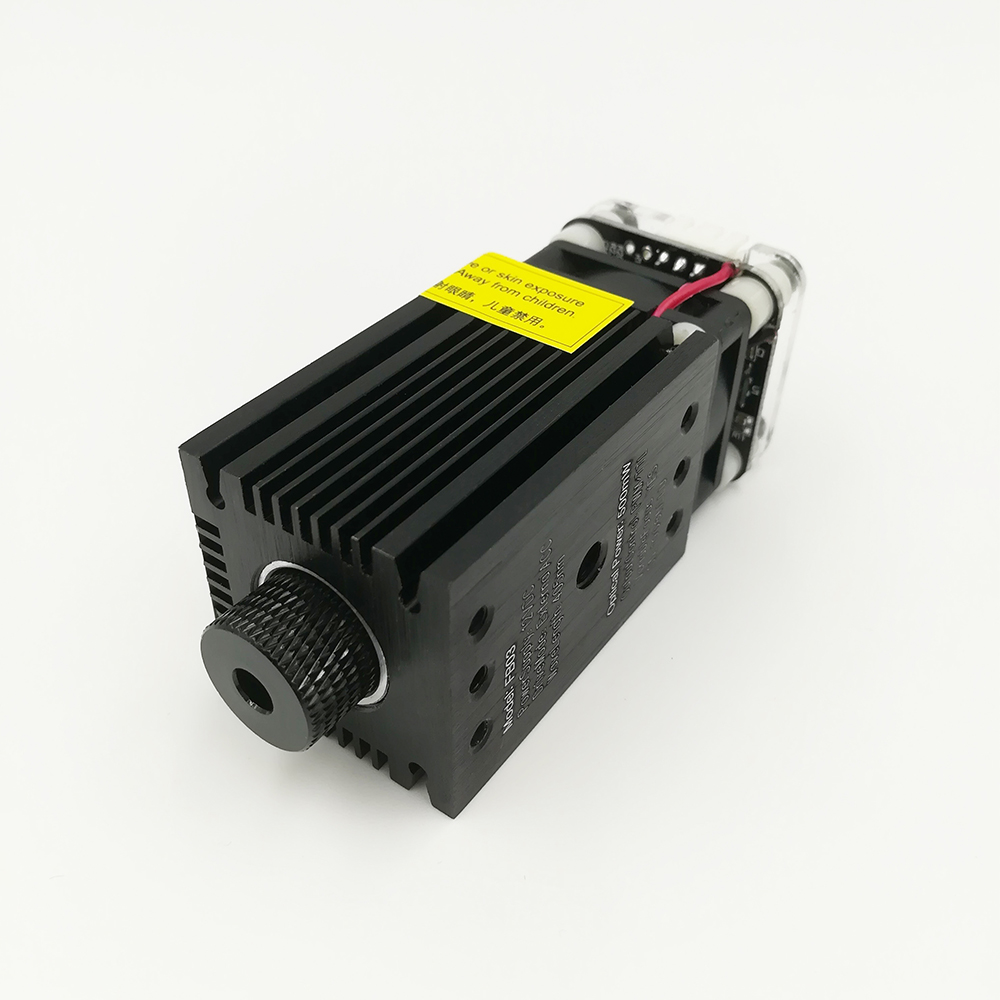

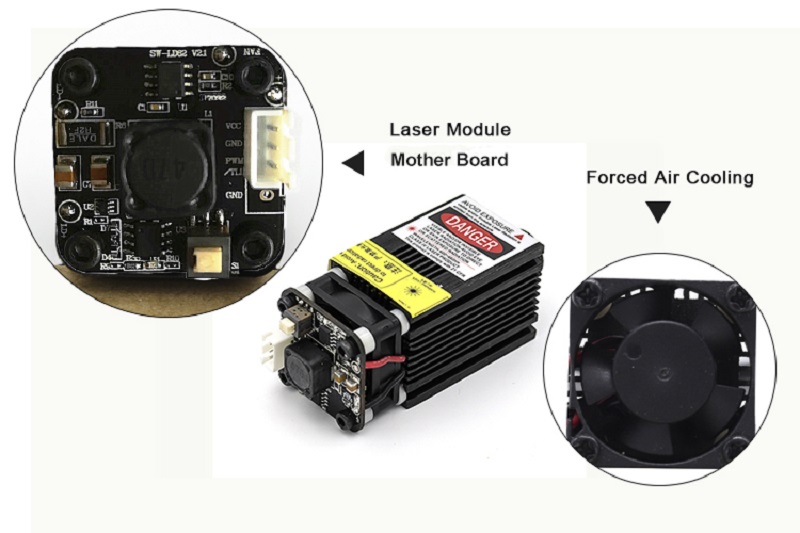

1000mW 445nm 12V Laser Module 1W Laser Cutter Head TTL/PWM Laser Power Modulation And Adjustable Focus For CNC Laser Engraver
Product Description:
Drive mode: external ACC constant current drive

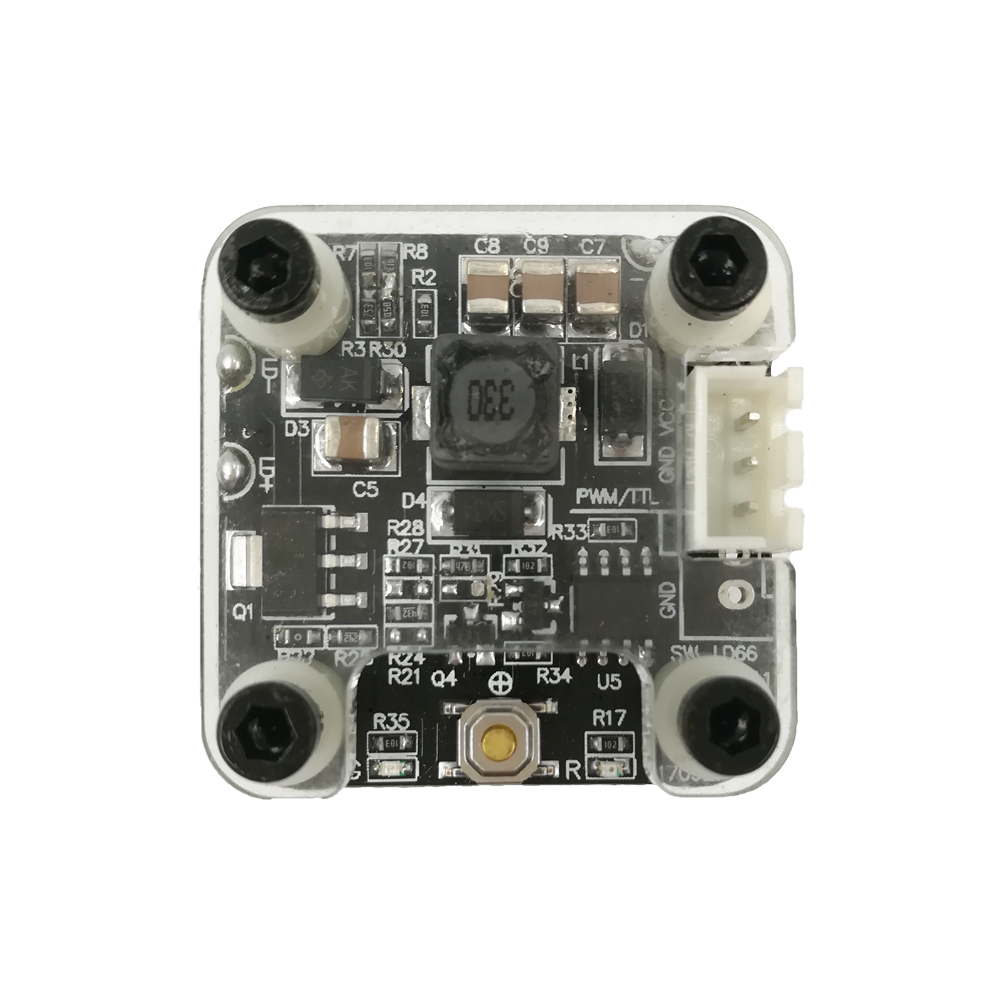

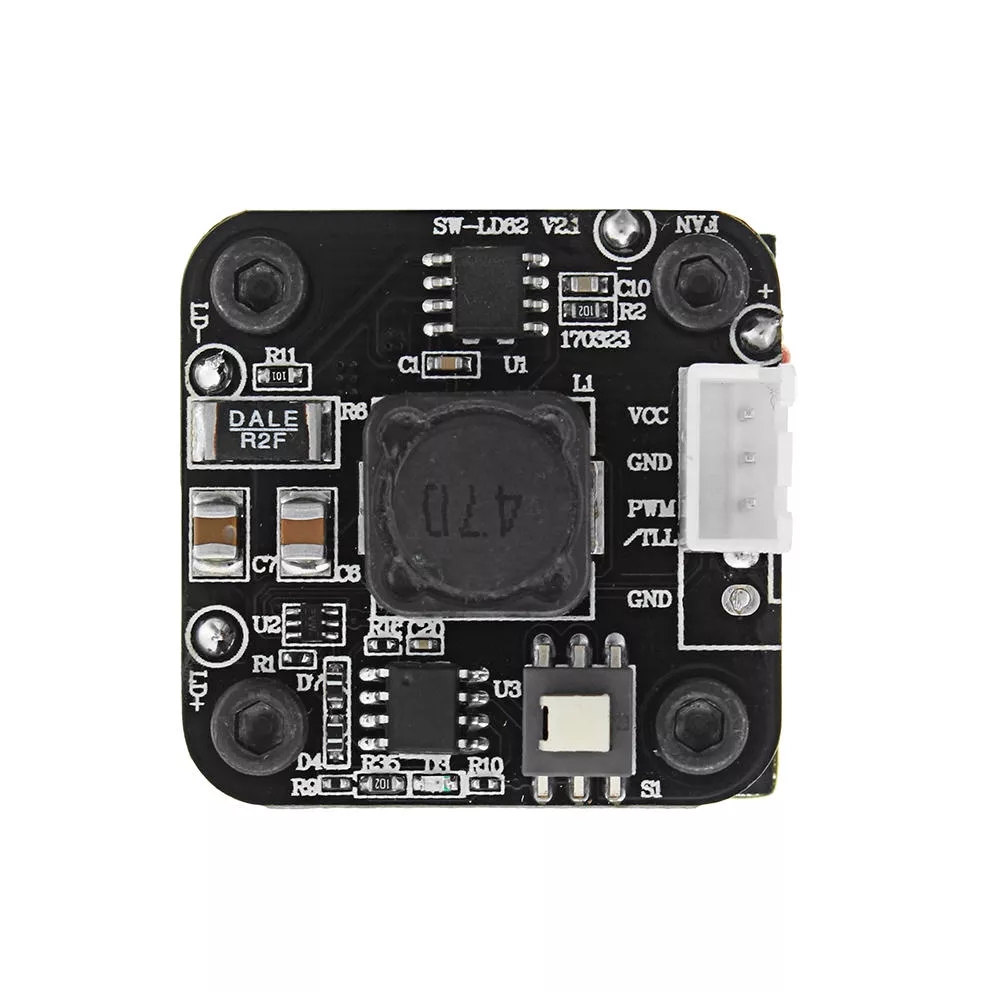

Power supply control interface: 2.54-3p (TTL control switch, PWM control power)
Collimator lens: optical glass coating
Additional function：weak light positioning switch function
Can Not process metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.
Carving on wood / bamboo / paper / plastic / leather / rubber / horn.
Can cut thin paper/ light wood / sponge paper / felt / fabric / sticker.
Notice:
- Laser power is relatively large, please wear protection glasses to avoid exposure to eyes.
- Do not use in flammable and gas atmospheres to avoid fire and explosion.
- Prohibit children from exposure to this laser product
- Do not open the module to avoid damage.
Package Include:
1×1W Laser moudle
1×3P connecting line
