Description
- Brand Name: annoytools
- Certification: CE
- Origin: CN(Origin)
- Model Number: 1000mw
1000mw 2P New Laser Modules 445nm Blue Light Can Adjust Focus Used for DIY Engraving

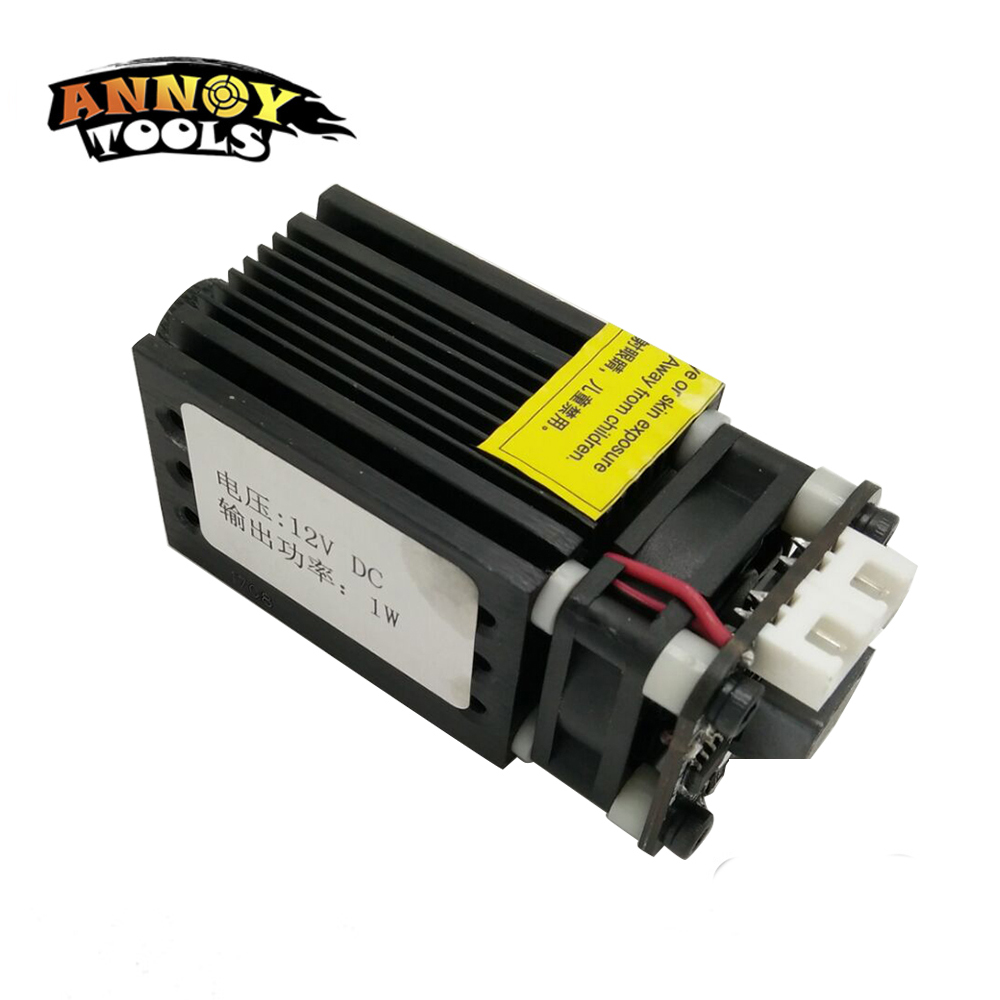

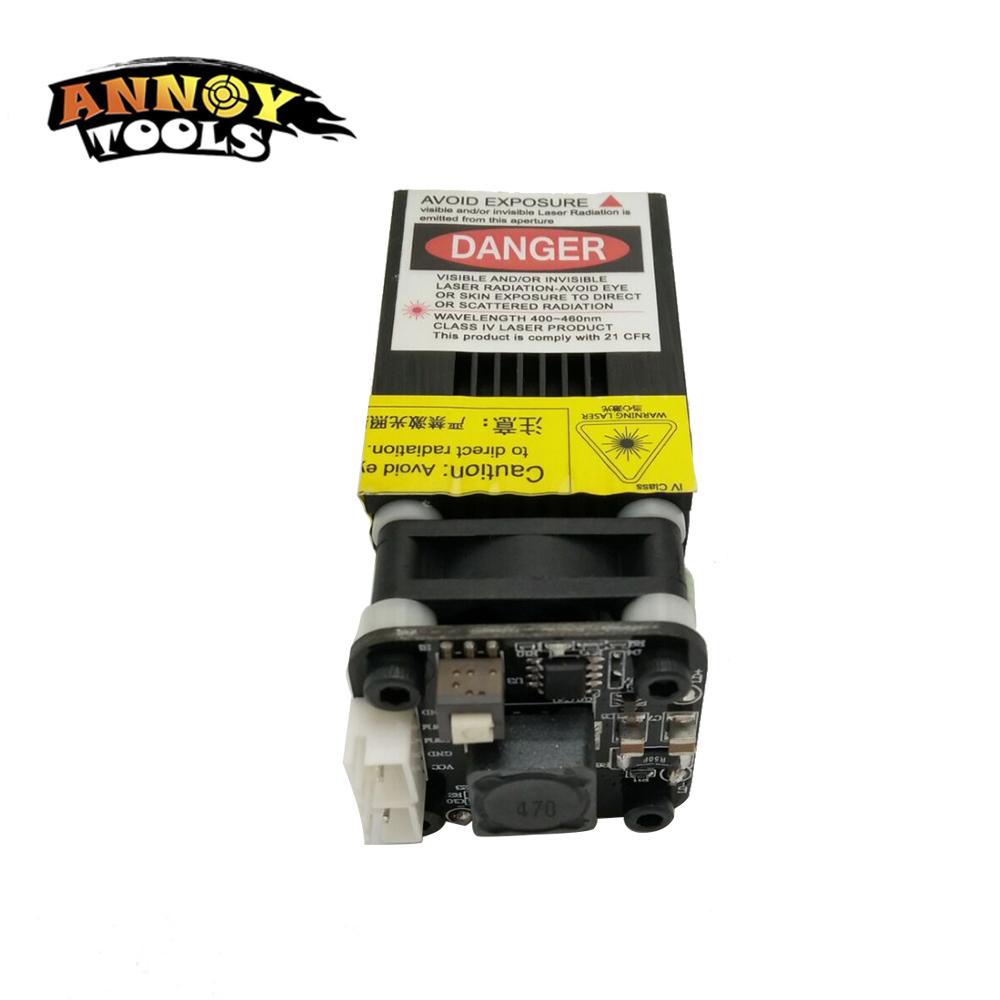

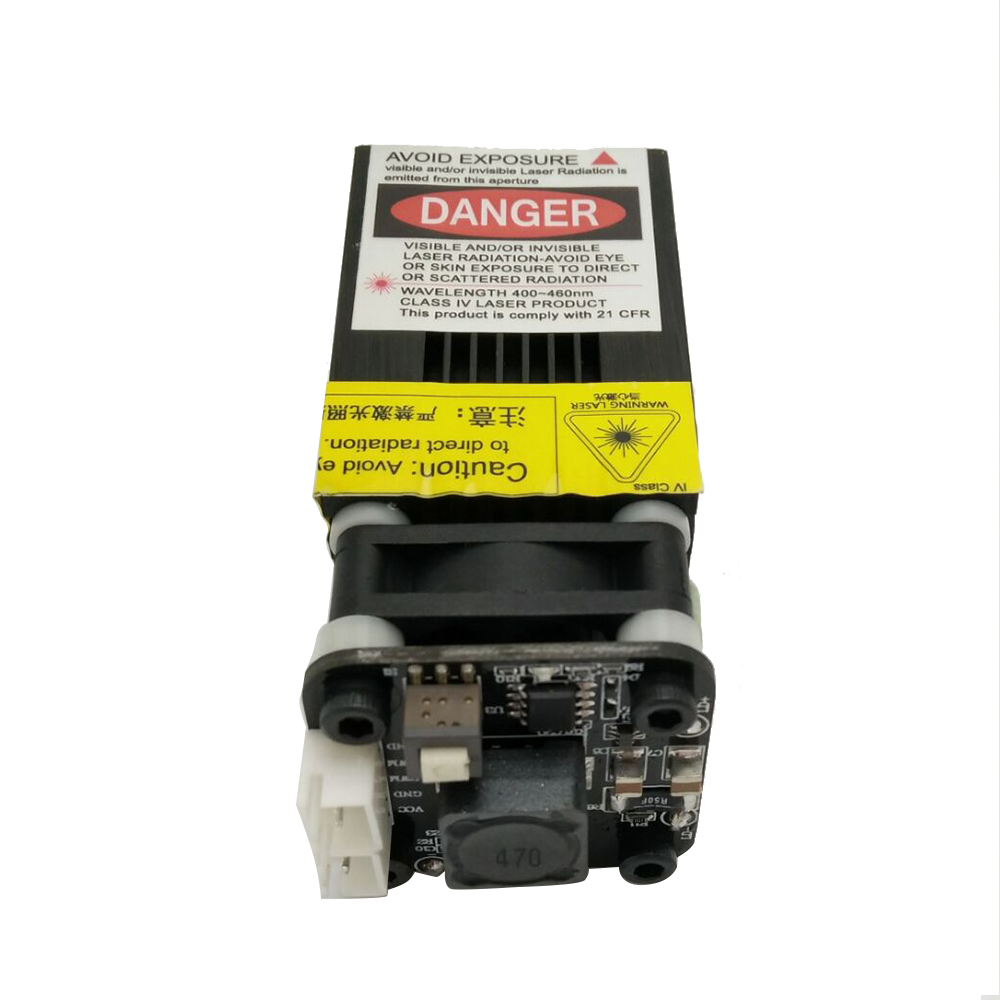

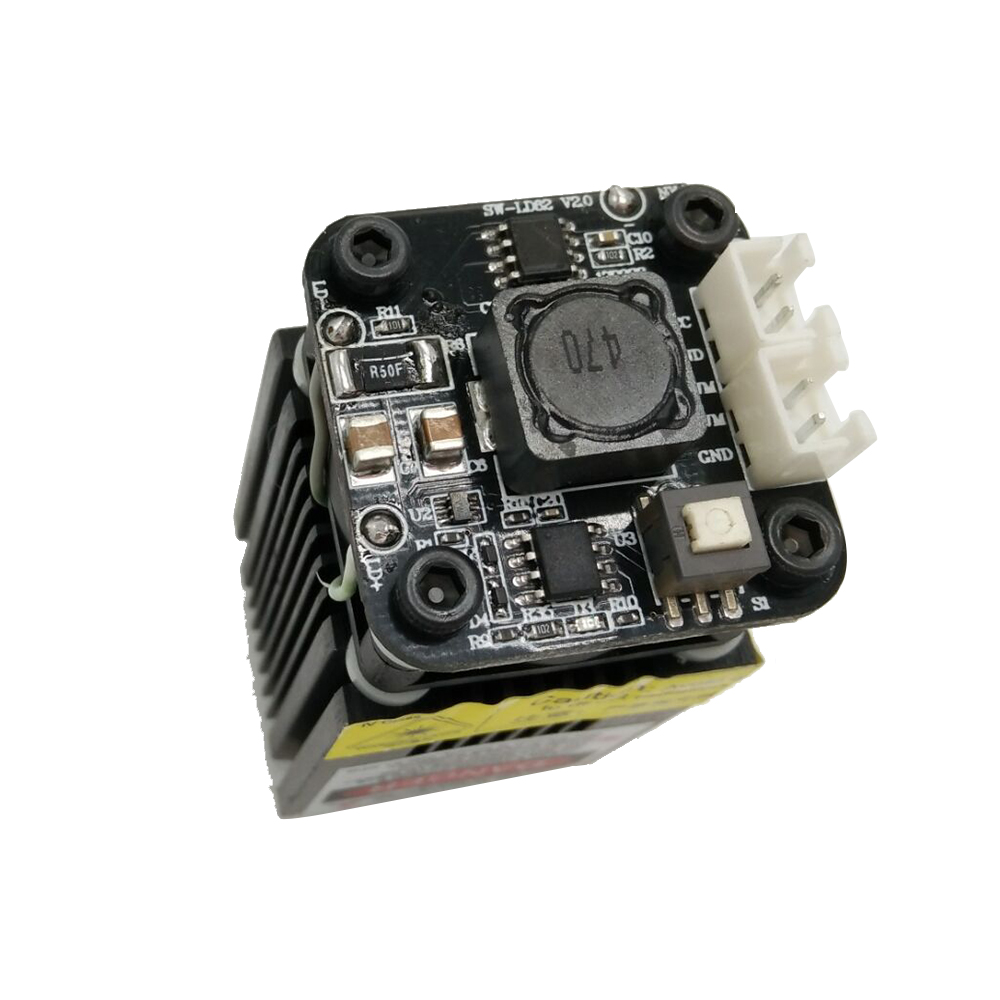

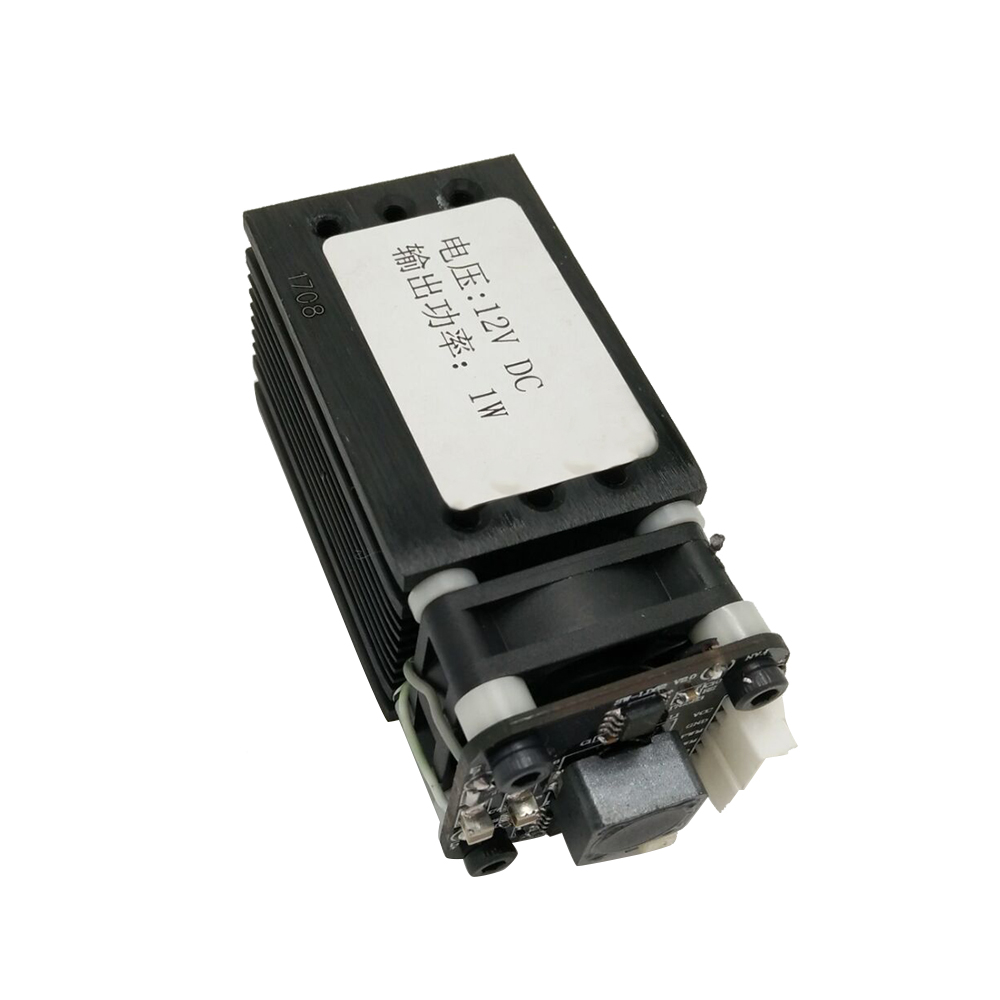

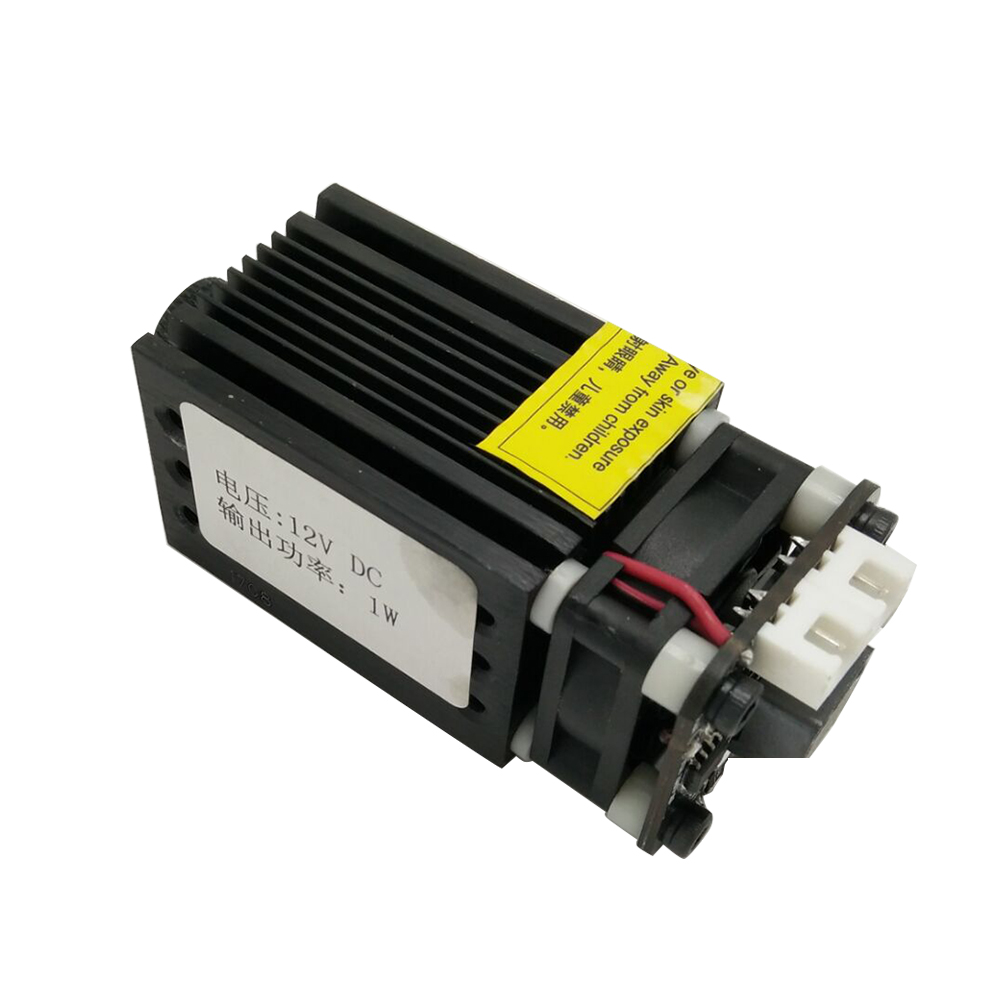

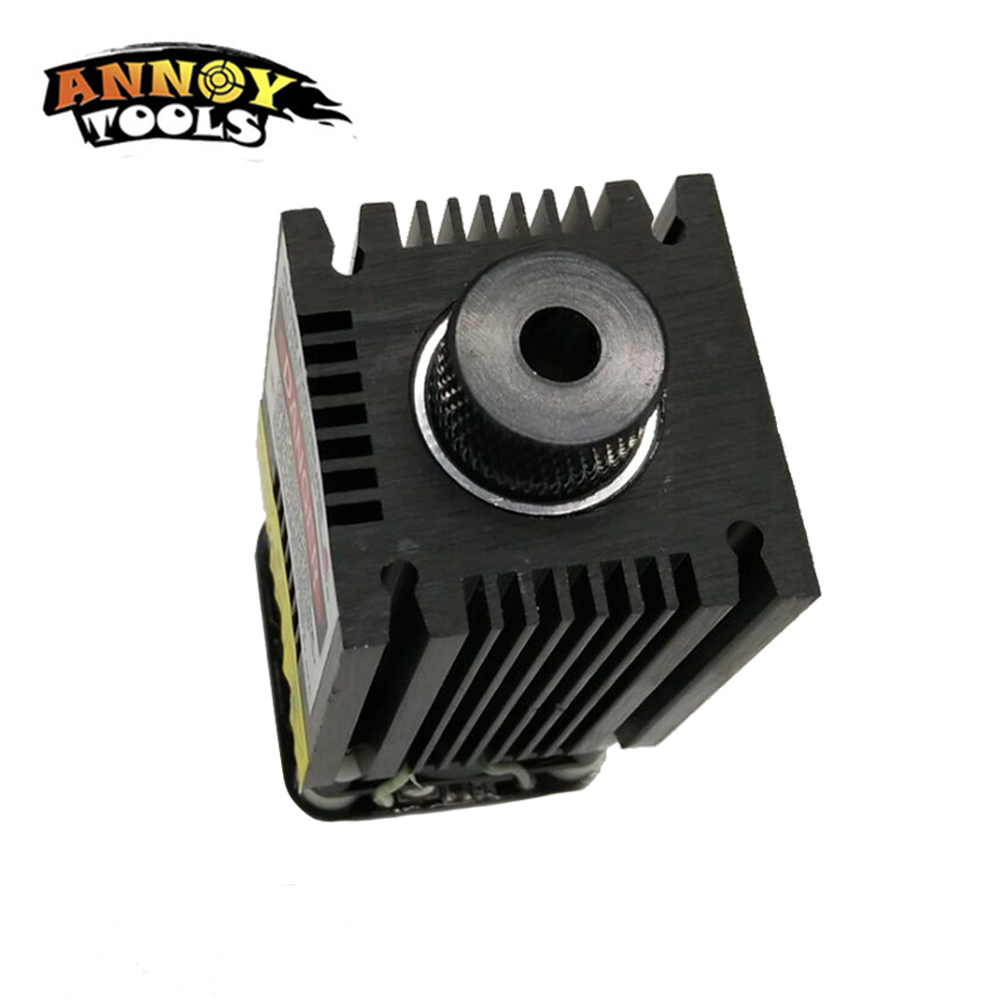

This 445nm 1000mW focusable blue laser module is equipped with constant-current driver board, aircraft aluminum heat sink and cooling fan ideal for DIY laser cutter equipment usage with stable out put power and long lifetime.
Technical Parameters:
Laser wavelength:445nm (blue violet)
Spot type:dotted (adjustable)
Light power: 1.0Watts (1000 mW)
Drive mode:external ACC constant current drive
Cooling method:forced air cooling
Operating voltage:12V DC
Power supply interface:2 * 2.54
Control interface:2 * 2.54 (TTL control switch, PWM control power)
Shell material:aluminum, surface anodized
Module material:copper
Collimator lens:optical glass coating
User must read:
1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it will cause permanent blindness, the consequences at your own risk.
2. Do not use in flammable and gas atmospheres to avoid fire and explosion.
3. Prohibit children from exposure to this laser product.
4. Do not open the module to avoid damage.
Can notprocessed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.
Carving wood / bamboo / paper / plastic / leather / rubber / horn.
Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.
For the laser and cable , please don’t disassemble , if not we will not be responsible. Hope you can understand .
