Description
- Brand Name: Gaqqee
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: LCR-T7
- AC Current: Pls check description
- AC Voltage: Pls check description
- Measuring Resistance Range: Pls check description
- Operating Mode: Pls check description
- Measuring Inductance Range: Pls check description
- Display Type: Digital Display
- DC Current: Pls check description
- DC Voltage: Pls check description
- Measuring Capacitance Range: Pls check description

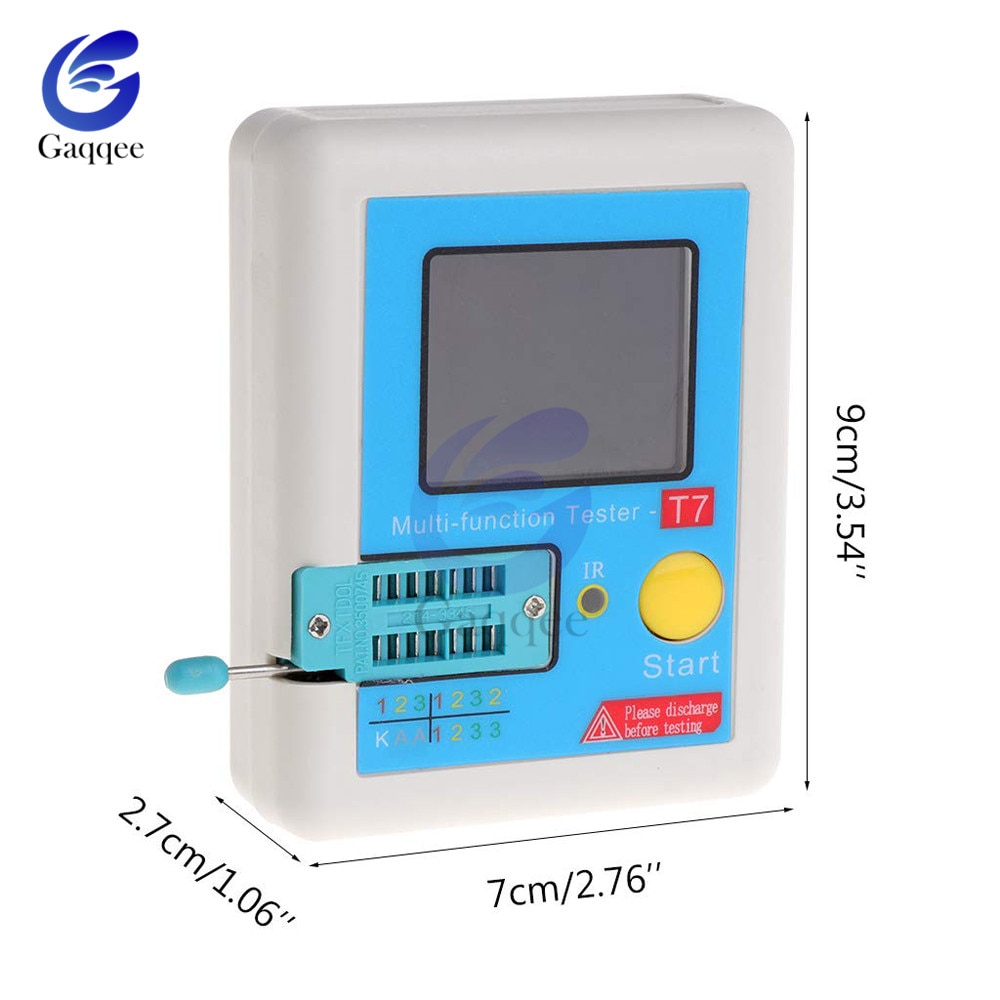

- Dimensions: Pls check description
- Operating Temperature: 0 – 50 ℃
Note:
In order to protect the safety of your product, the test capacitor must be discharged first to avoid electrostatic breakdown of the chip and burn the product.
Transistor Detection:
After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle,
press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
Feature:
Automatic detection of zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.

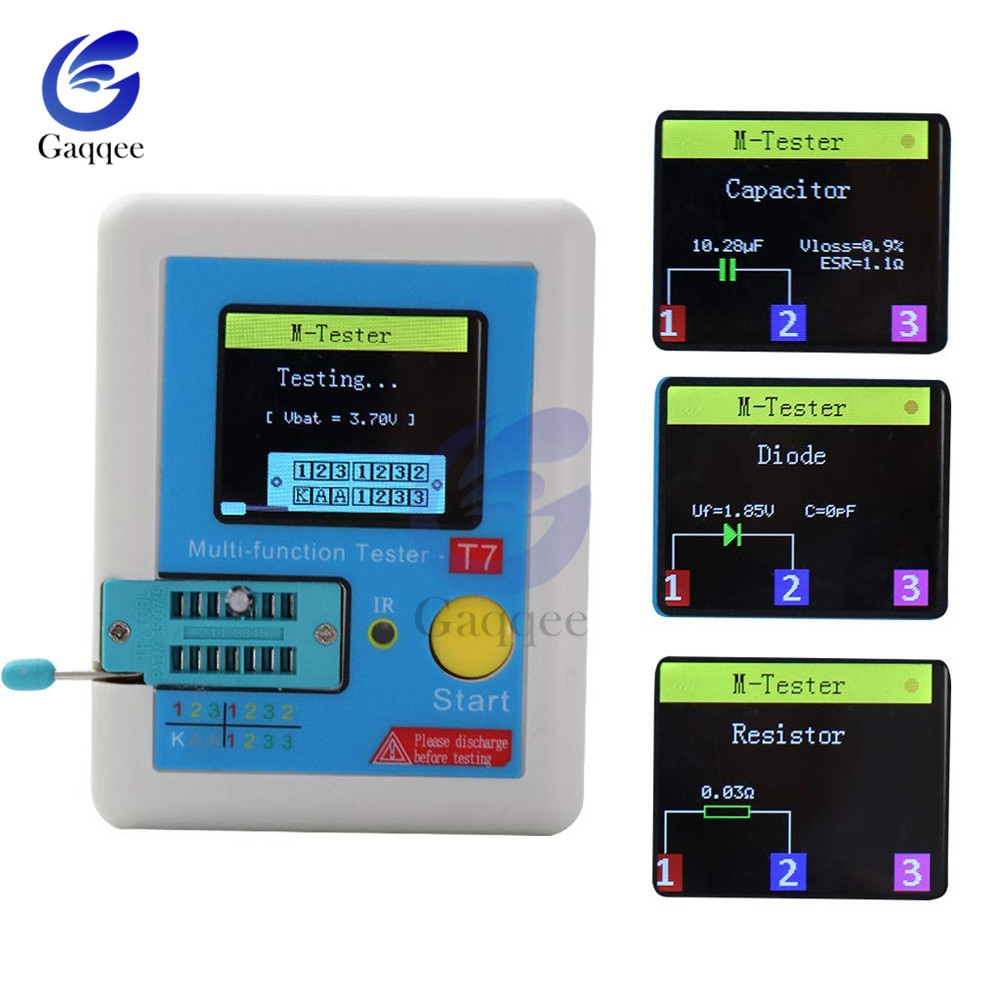

Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.
Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries
Specification:
Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160 * 128 TFT
Battery: 1 * Li-ion battery, 3.7V, 300mAh

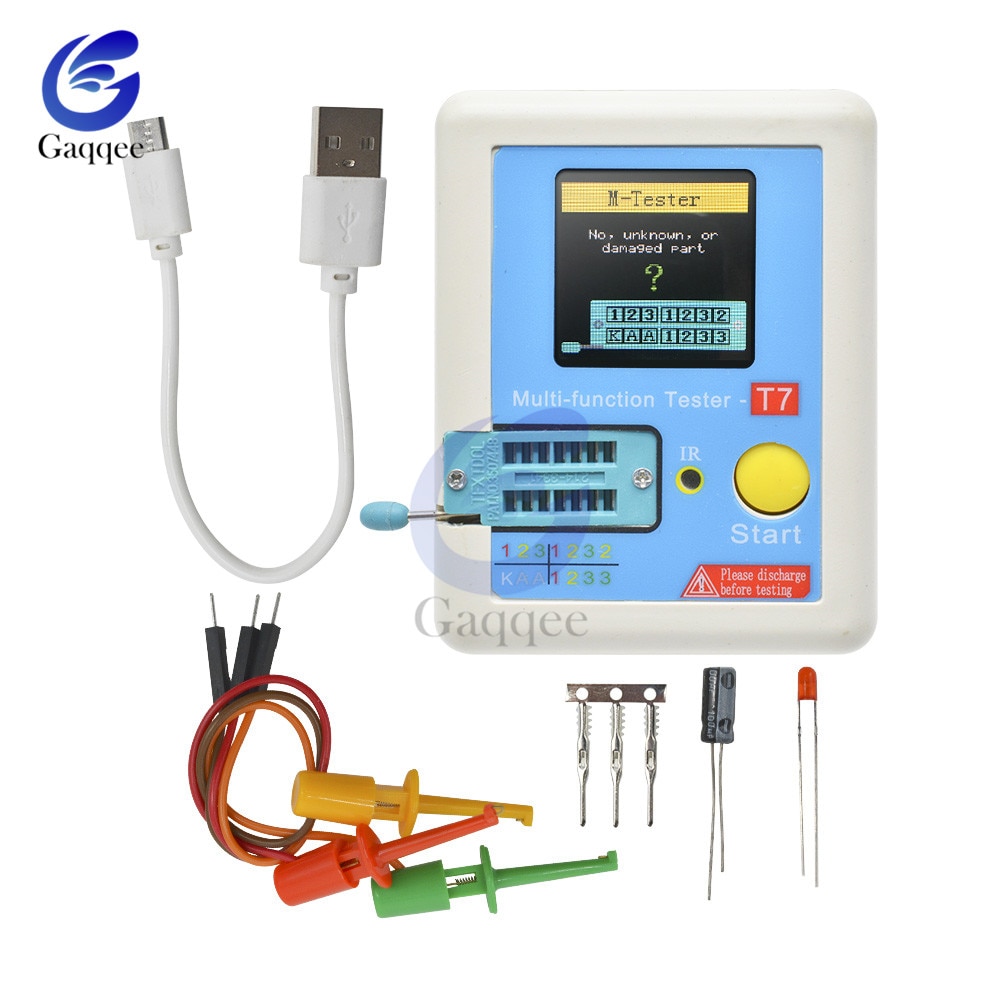

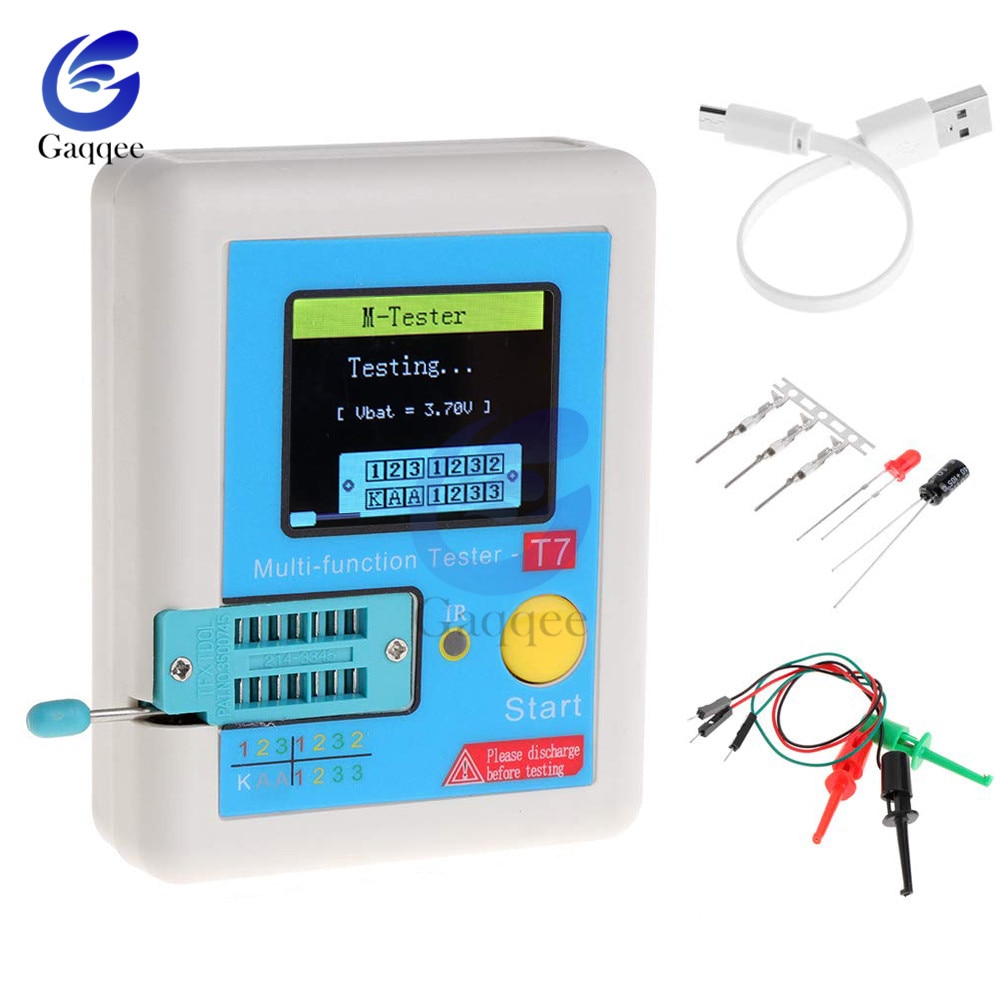

Package include:
1 * Tester
1 * USB Cable
1 * Test Clip
1 * LED
1 * Capacitance
1 * Resistance
