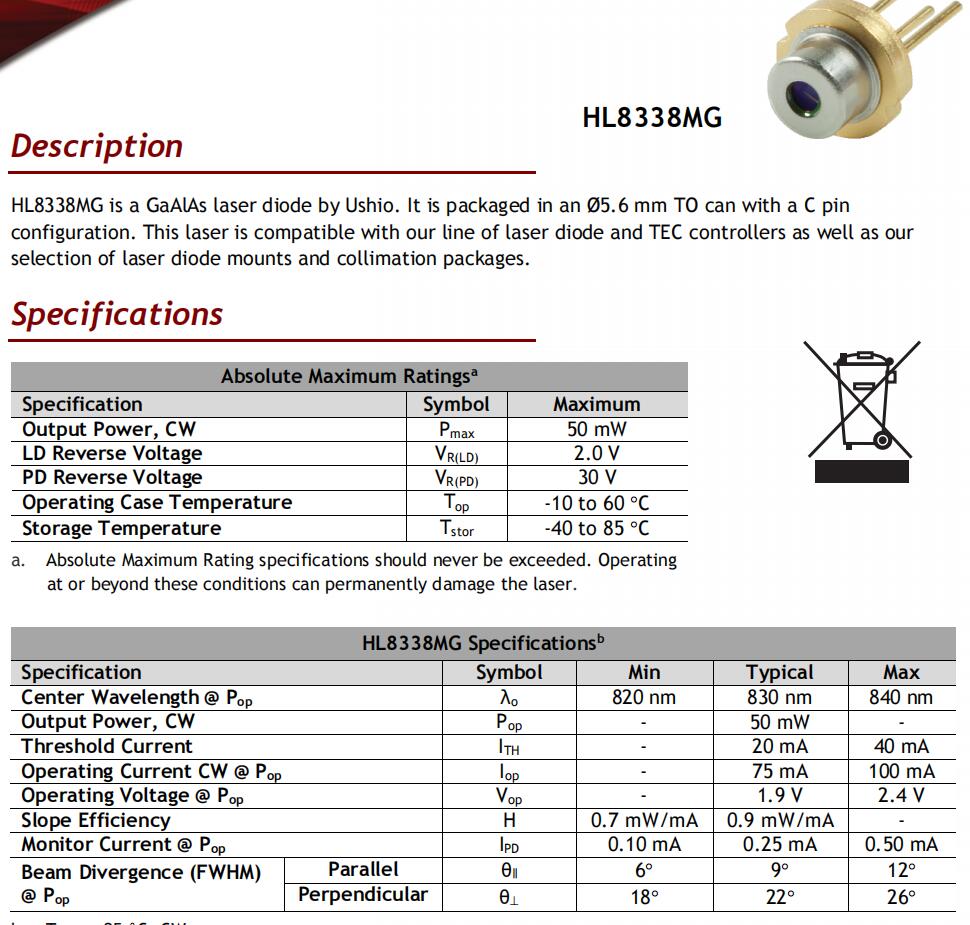

Description

The HL8338MG from Ushio Inc. is a Laser Diode with Wavelength 820 to 840 nm, Output Power 0.05 W, Operating Voltage 1.9 to 2.4 V, Operating Current 75 to 100 mA, Threshold Current 20 to 40 mA. More details for HL8338MG can be seen below.

Part Number
HL8338MG
Manufacturer
Ushio Inc.
Applications
Application
Sensor application, Night vision, Machine vision, Light source of optical equipments
General Parameters
Operation Mode
CW Laser
Wavelength
820 to 840 nm
Output Power
0.05 W
Operating Voltage
1.9 to 2.4 V
Operating Current
75 to 100 mA
Reverse Voltage(PD)
30 V
Threshold Current
20 to 40 mA
Monitor Current
0.10 to 0.50 mA
Laser Gain Medium
GaAlAs
Beam Divergence Parallel
6 to 12 Degree
Beam Divergence Perpendicular
18 to 26 Degree
Laser Color
Near Infrared
Package Type
TO-Can
Transverse Mode
TE Mode
Type
Free Space Laser Diode
Output Power (CW)
0.05 W
Note
Transverse Mode: TE Mode
Temperature
Operating Temperature
-10 to 60 Degree C
Storage Temperature
-40 to 85 Degree C
