Description

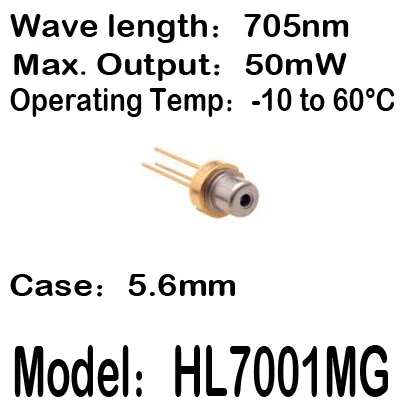

1-20pcs/lot HL7001MG 705nm 50mW 5.6mm -10 to 60C operating temp Laser diode.

The HL7001MG from Ushio Inc. is a Laser Diode with Wavelength 695 to 715 nm, Output Power 0.05 W, Operating Voltage 2.5 V, Operating Current 75 to 100 mA, Threshold Current 30 to 60 mA. More details for HL7001MG can be seen below.

Download the datasheet for HL7001MG 705nm 50mW 5.6mm Laser diode.

HL7001MG 705nm 50mW 5.6mm Laser diode datasheet

Part Number:HL7001MG
Manufacturer:Ushio Inc.
Applications:Application
Medical, Measurement, Laser module, Sensing
General Parameters
Configuration:Single Emitter
Operation Mode:CW Laser
Wavelength:695 to 715 nm
Output Power:0.05 W
Operating Voltage:2.5 V
Operating Current:75 to 100 mA
Reverse Voltage(PD):30 V
Threshold Current:30 to 60 mA
Monitor Current:0.15 to 0.6 mA
Laser Gain Medium:InGaAsP
Beam Divergence Parallel
7 to 14 Degree
Beam Divergence Perpendicular
14 to 25 Degree
Laser Color
Near Infrared
Package Type
TO-Can
Package
5.6 mm
Transverse Mode
TE Mode
Type
Free Space Laser Diode
Output Power (CW)
0.05 W
Note
Transverse Mode: TE Mode
Temperature
Operating Temperature
-10 to 60 Degree C
Storage Temperature
-40 to 85 Degree C
