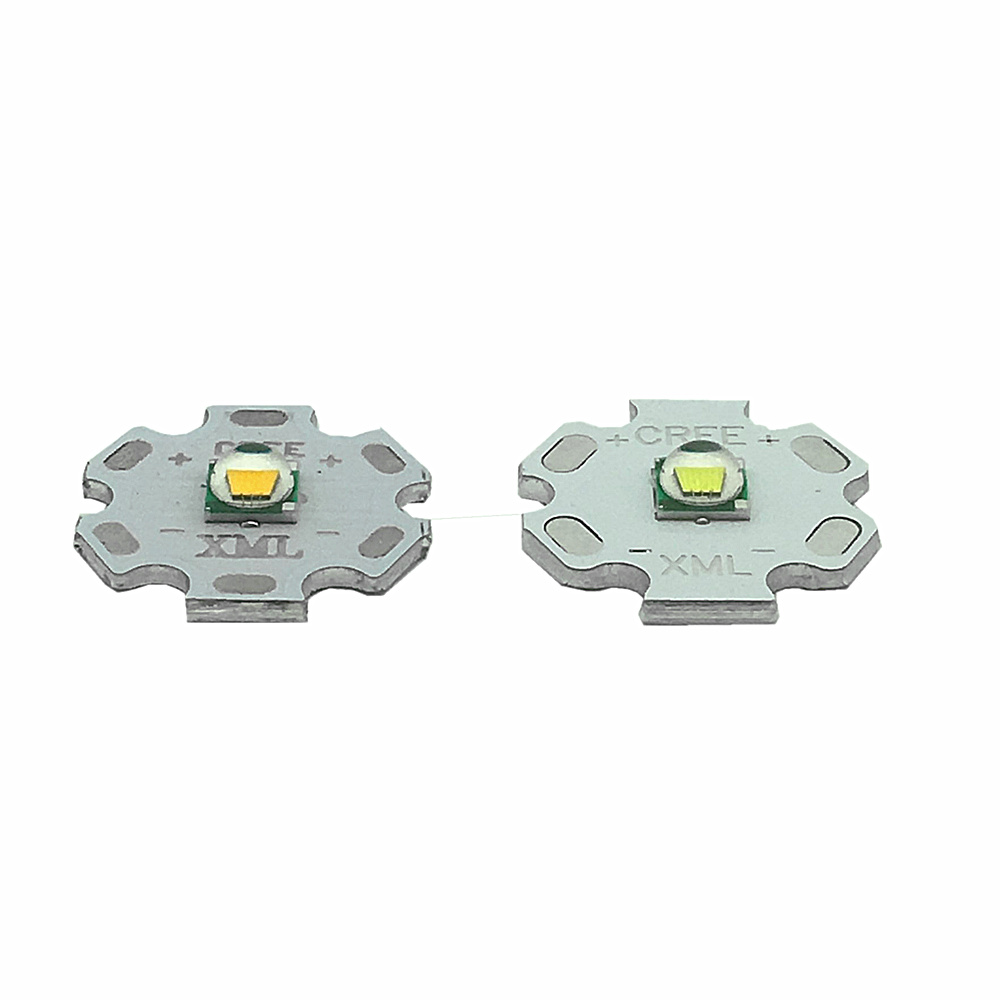

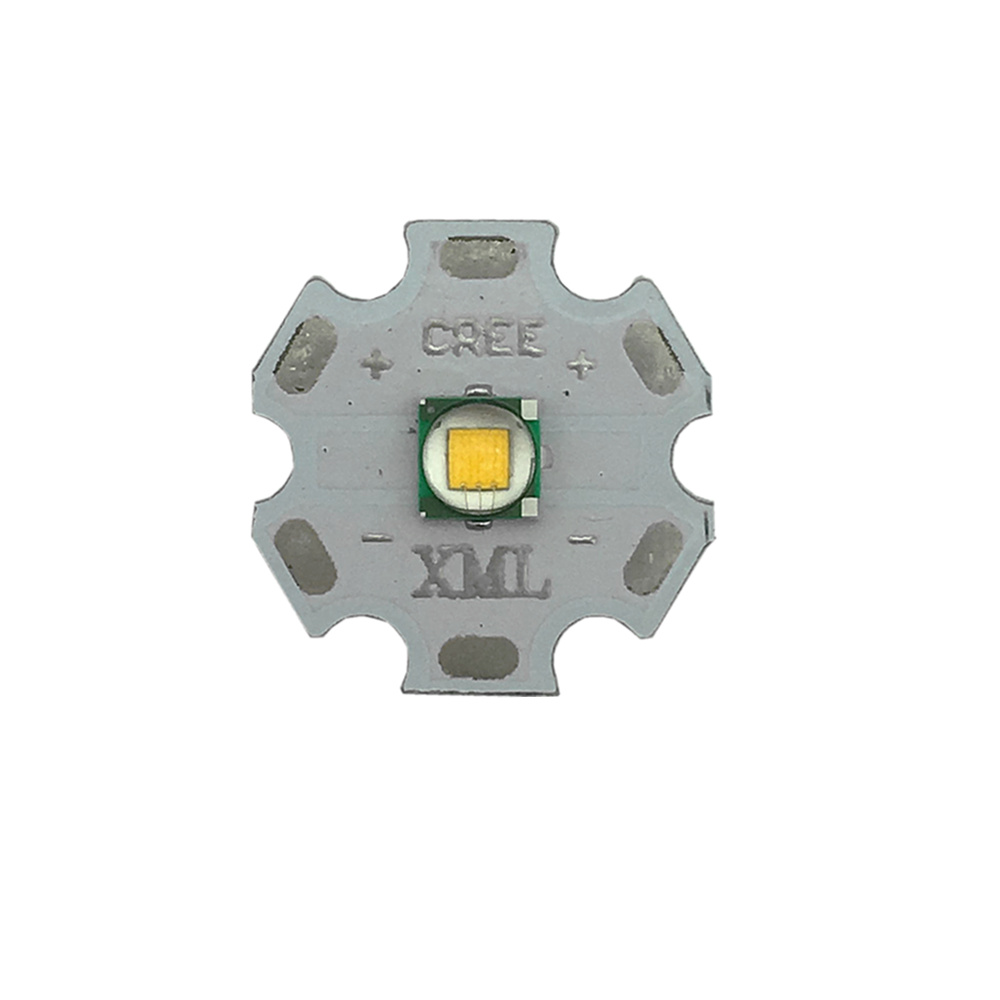

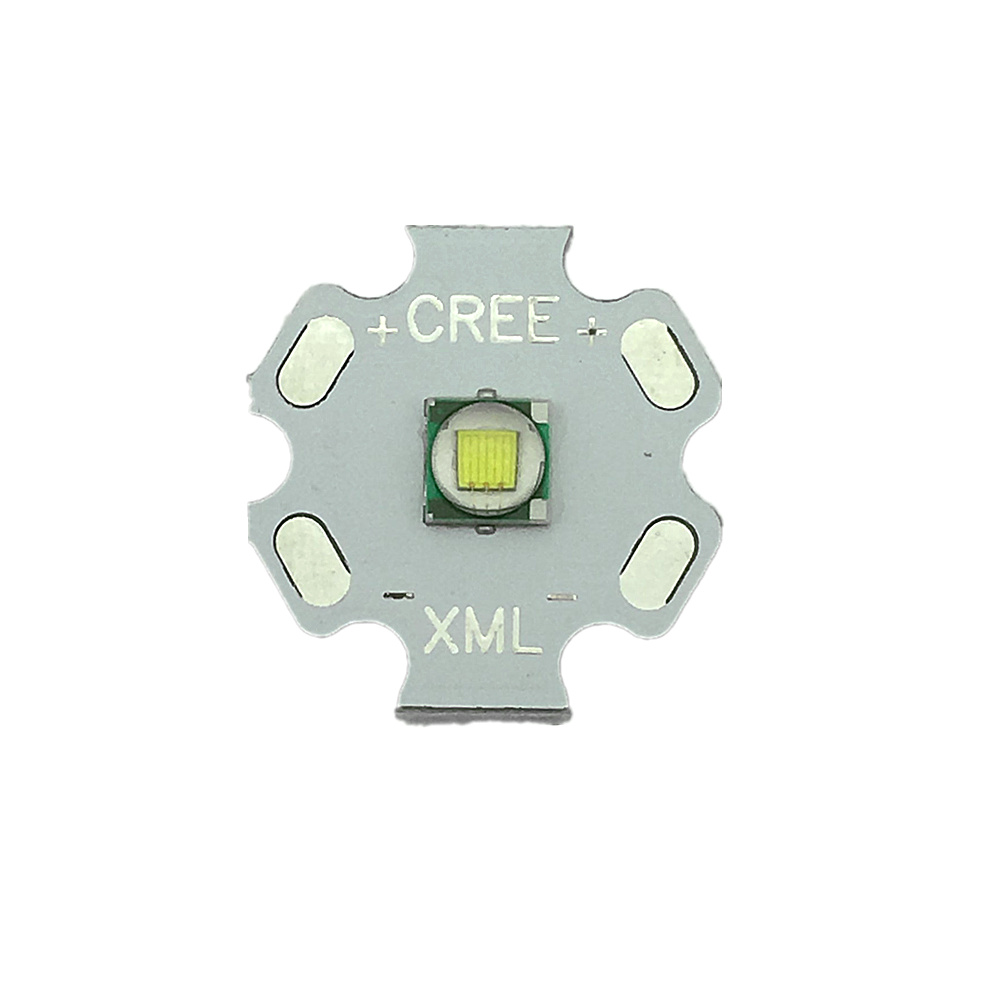

1-10pcs CREE XML XM-L T6 LED T6 U2 10W WHITE Warm White High Power LED Chip Emitter with 20mm PCB for DIY

XLamp XM-L
Highest-Performing, Commercially Available, Single-Die LED

Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125′
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH Reflow solderable-JEDES J-STD-020C Electrically neutral thermal path Technical Parameters: Quantity:1pcs Model Type: Cree XML-T6 Emitted Color :White/Warm White Color Temperature: 6500-7000K/2800-3000K Viewing Angle: 110 Degree DC Forward Voltage (VF): 2.9-4Vdc DC Forward Current (IF): 3.0A Power: 10W Low thermal resistance: 2.5°C/W Maximum junction temperature: 150°C Viewing angle: 125° Diameter 20mm ANSI-compatible chromaticity bins Unlimited floor life at ≤ 30oC/85% RH Reflow solderable - JEDEC J-STD-020C Electrically neutral thermal path
