Description
- Brand Name: Nakupenda
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 30W Laser Module
- CNC or Not: CNC
- Color: Blue
- Laser Power: Pulse 30W
- Shell material: Aircraft aluminum, copper,surface anodized
- Cooling method: forced air cooling
-
Laser Power : 30W
-
Laser Wavelength: 450nm
-

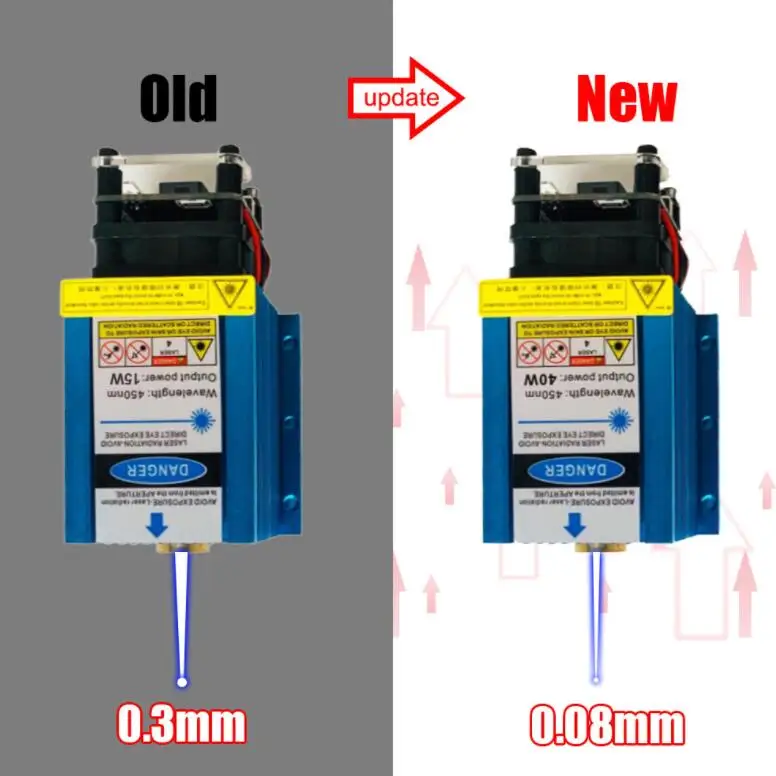

Beam Shape: 0.1mm Point
-
Focal Length: Fixed focal length
-
Shell material:Aircraft aluminum,copper,surface anodized
-
Power Port Input Voltage: DC 12V
-
PWM Port Input Voltage: DC 5V
-

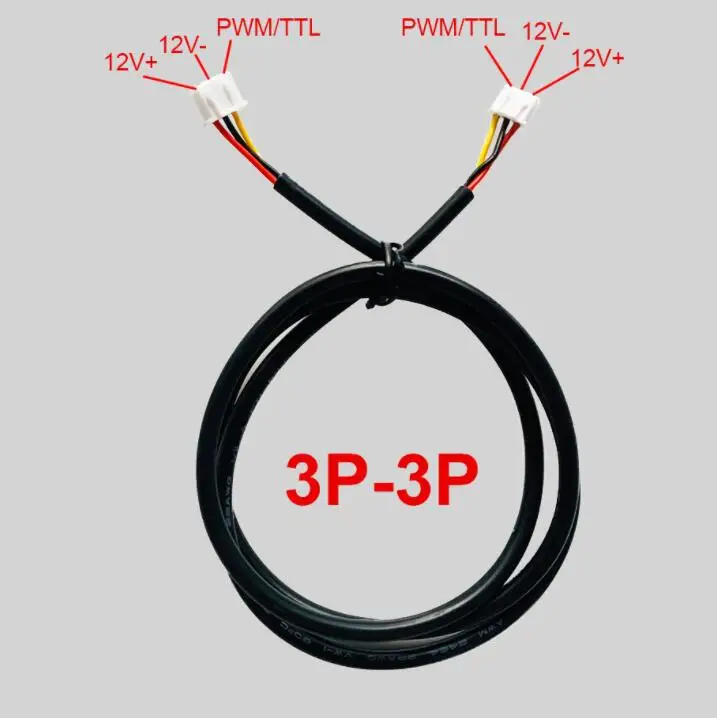

Power Supply Interface : XH2.54*3P(TTL control switch, PWM control power)
-
Driving mode: External ACC Constant Current Drive
-
Cooling method: forced air cooling
-
Life Time:8,000hours
-
Working temperature:-40-75Celsius
-
The laser point is not adjustable, please adjust the distance between Laser bottom and engraving material into 20mm (set with plastic columns).
-
Stainless steel,control speed from 100-150
-

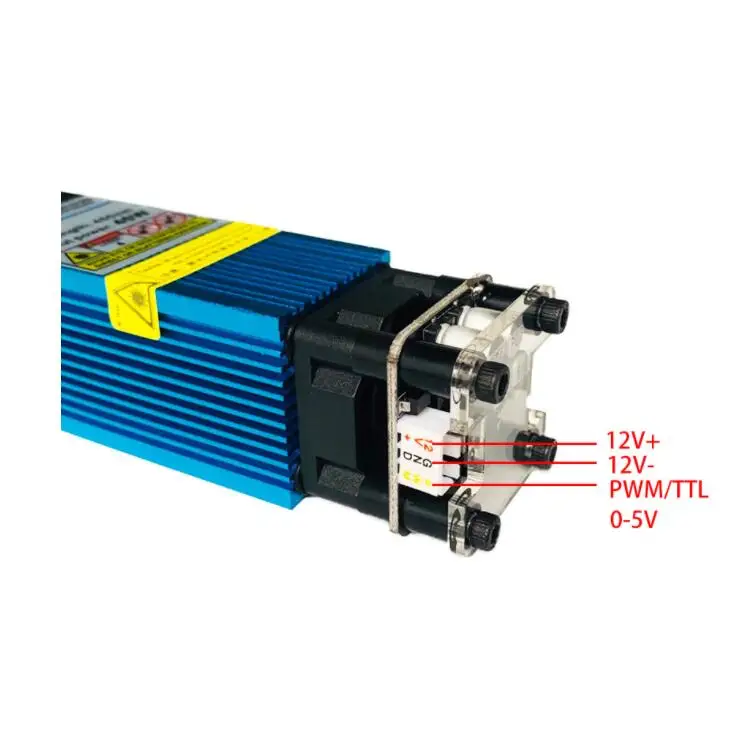

Please connect the driver board carefully! The red wire corresponds to 12V, the black wire corresponds to GND-,and the yellow line corresponds to Signal (S).
-
Please wear thegogglewhenlaser module is working..
-
Please don't touch the laser directly to avoid hurting the body and skin.- When working with lasers, keep children and pets at a safe distance
-

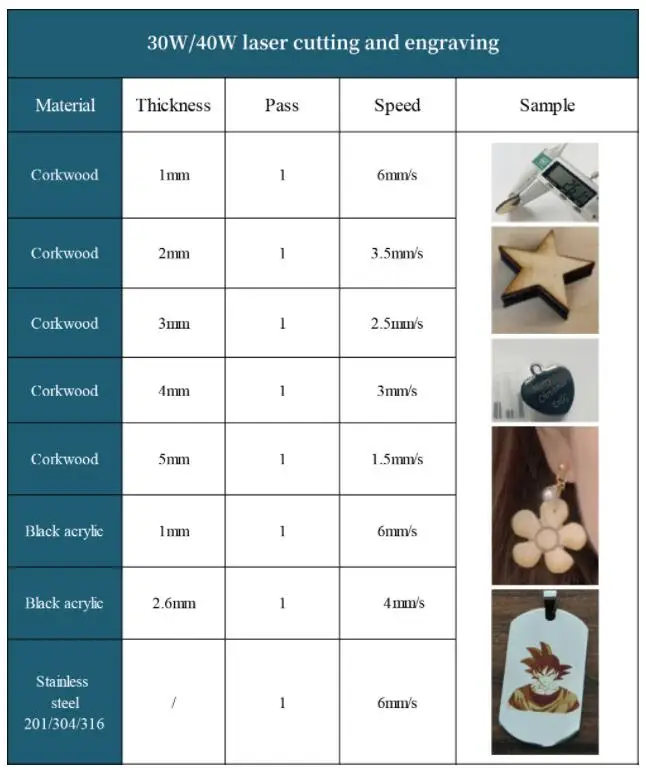

Engrave Material🙁 can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum,stone),MDF,Balsa,Wood, Fabric,Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
-
Cut Material: 30 W can cut Black acrylic 1-4 mm, 1-4 mm plywood, leather 1 mm, paper etc
-
Non-engravable materials:all metals, stones, ceramics, glass, reflective materials, transparent materials
Software and instructions
-
Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment).
-
Or tell me your email address, we'll send you the software and installation instruction
Brief introduction
A. What area it can used for?
-
Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.
B. What materials it can used for?
-
Engrave Material:Metal( 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum),Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
-
Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
C. Samples
Shipping Methods:
1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-3 workdays
2. Wholesales Orders : 2-5 workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
Problem and Feedback:
Please contact us first when you have problem
Give us the opportunity to resolve any problem
We will try our best to help youto solve the problem.
Your satisfaction is very important for our store,
So please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are not satisfied with our package like the products is damage,
Please contact us immediately,we'll help you r refund if it's our mistake.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
