445nm-2500mw Gold Module Laser DI Messa A Fuoco Blue Laser Incisione Laser Testa, 2.5W Tubo Del Laser Diode 2p Port

Product Features:

This 445nm 2500mW focusable blue laser module is equipped with constant-current

driver board, aircraft aluminum heat sink and cooling fan ideal for DIY laser cutter

equipment usage with stable out put power and long lifetime.

User must read:

1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
2. Do not use in flammable and gas atmospheres to avoid fire and explosion
3. Prohibit children from exposure to this laser product.
4. Do not open the module to avoid damage.

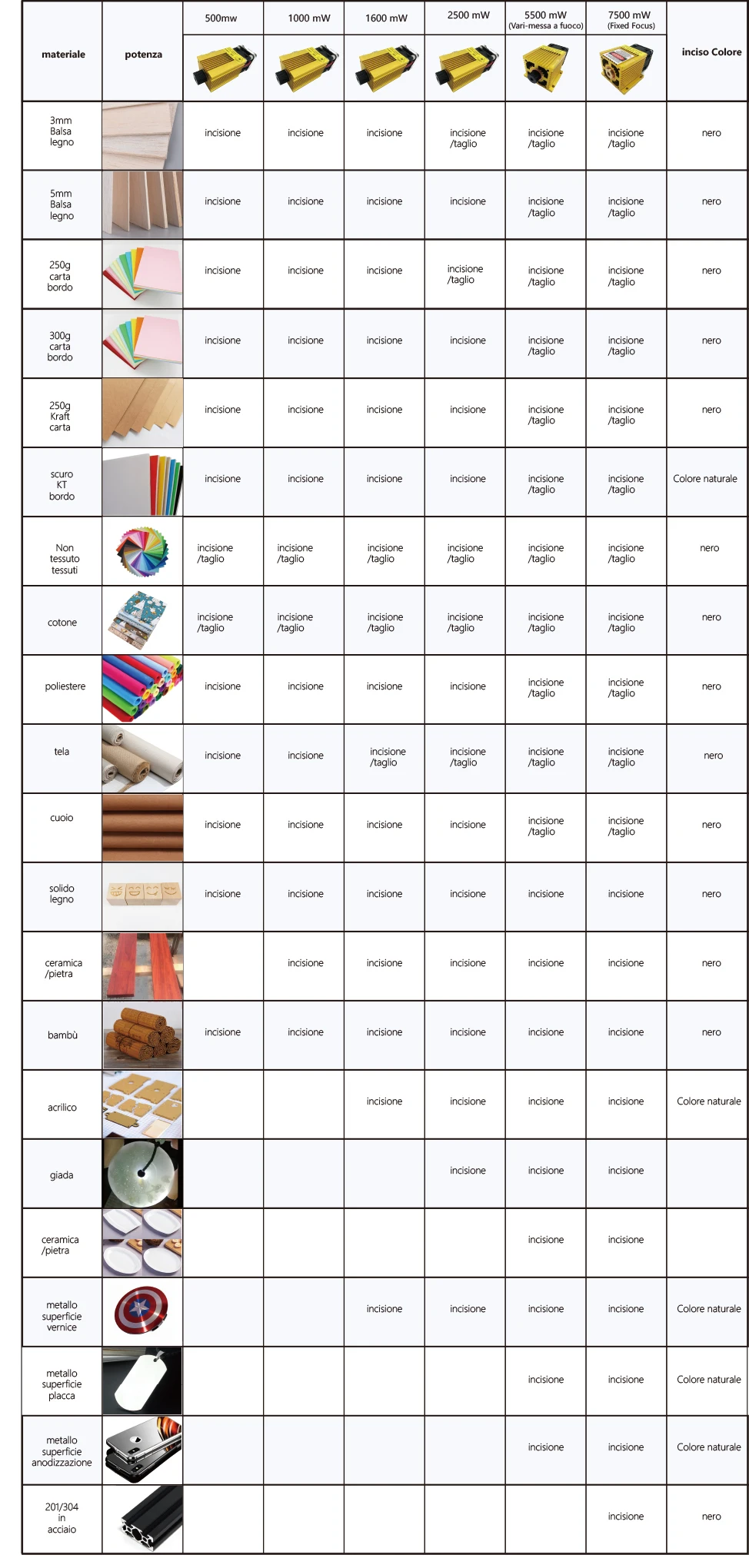

–Can notprocessed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent
material.
–Carving wood / bamboo / paper / plastic / leather / rubber / horn.
–Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.

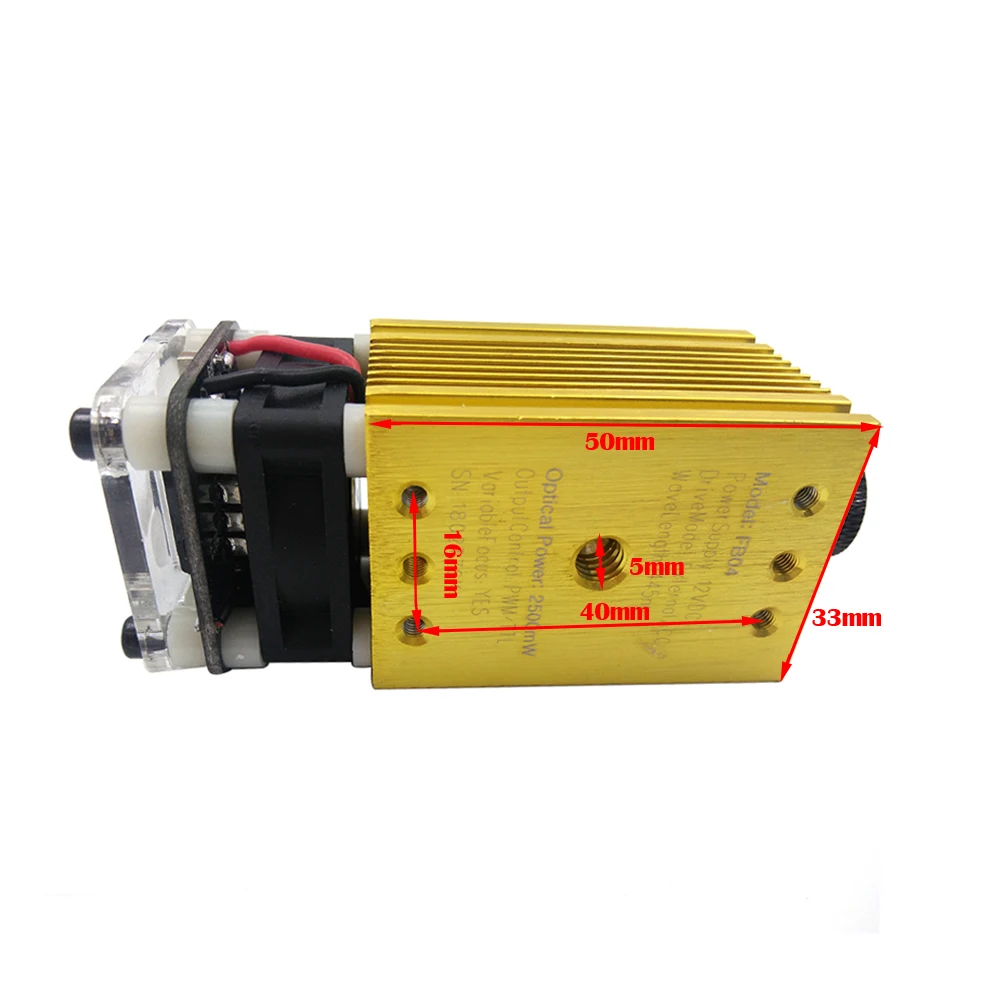

Product Specification:

–Laser wavelength: 445nm (blue viole)
–Spot type: Dotted (adjustable)
–Light power: 2.5Watts (2500mw)
–Drive mode: external ACC constant current drive
–Cooling method: Forced Air Cooling
–Operating voltage: 12V DC

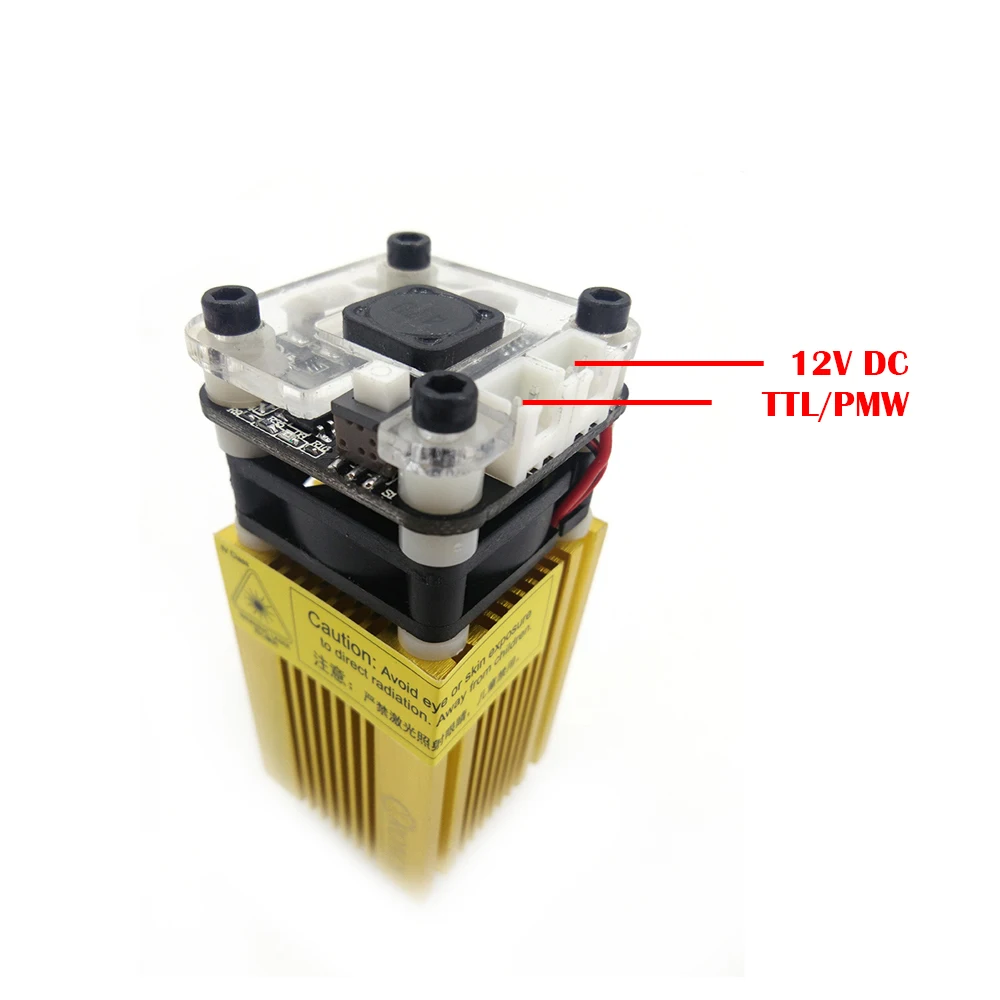

–Power supply interface: 2 * 2.54
–Control interface: 2 * 2.54 (TTL control switch, PWM control power)
–Shell material: Aluminum, Surface Anodized
–Module material: Copper

Input power: 12V DC(8-15V), Curren:2A.
PWM/TTL Rear-Time Control, it can adjust 0.1%-100%.
​Weak Light Button, used for laser’s test.
Diode used Copper Jacket.
Shell used Aviation Aluminum Anodizing.

Industrial design, heat dissipation, control integrated structure.

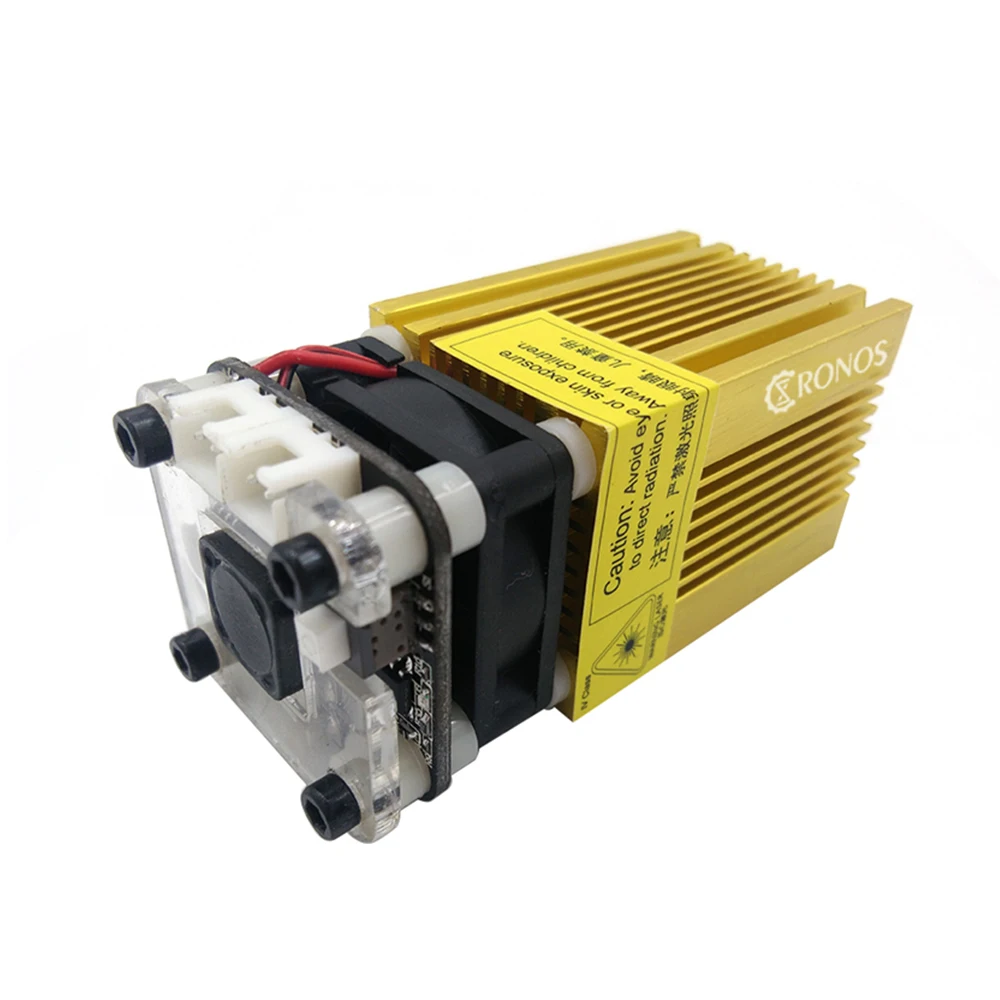

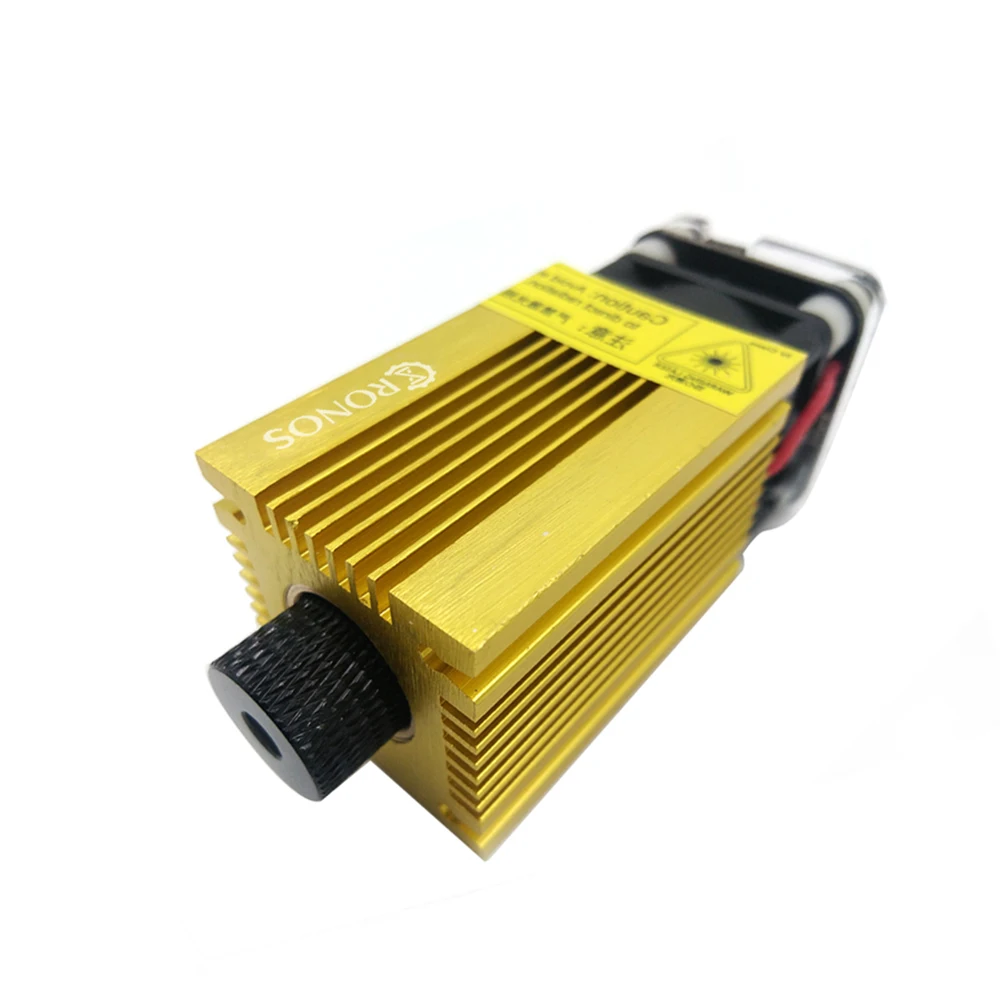

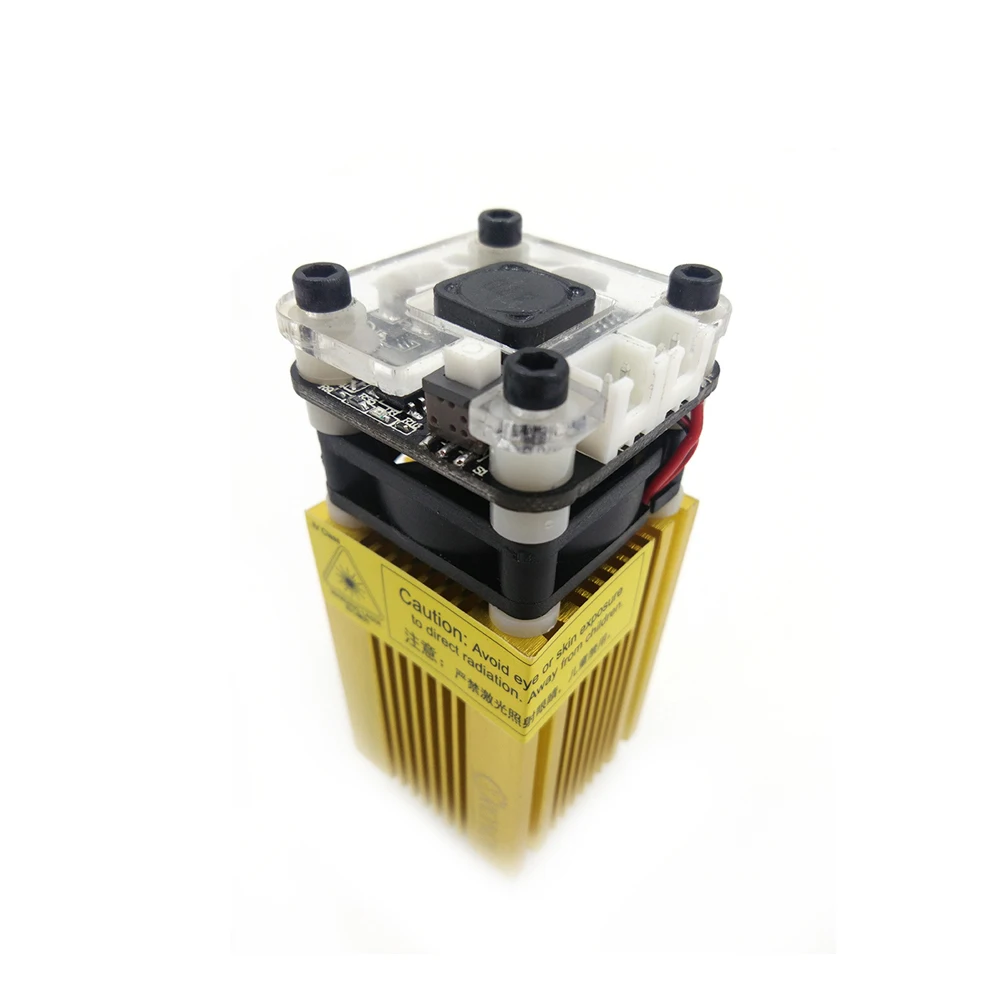

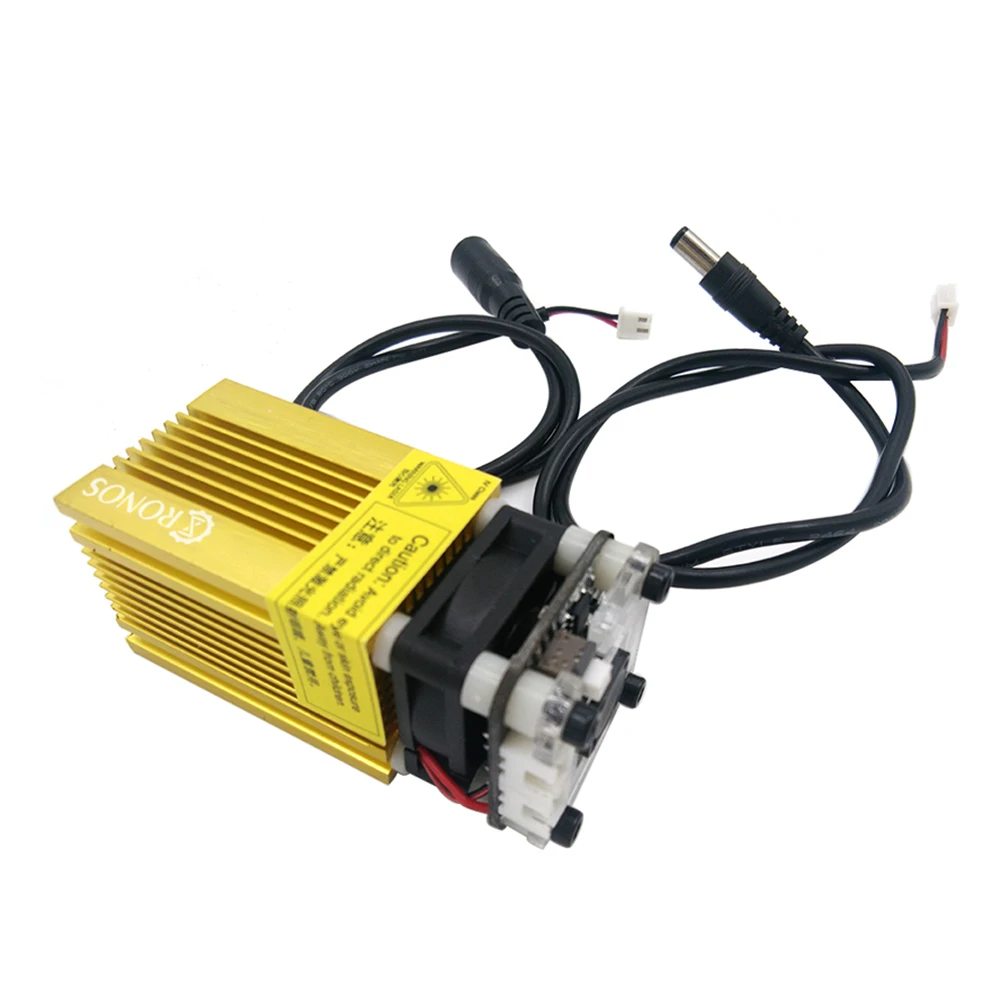

Produce Prcture:

FAQ:

Q : How To Focus The Laser ?
A：First , you need press the weak light button which is on the top of laser.
Q：Where is the TTL port? I can only see the PWM?
A：TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module’s PWM port
to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q：How can I connect this module to the my engraver?
A:If you don’t need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
–Do not use in flammable and gas atmospheres to avoid fire and explosion.
–Prohibit children from exposure to this laser product.
–Do not open the module to avoid damage.

F.A.Q:

Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included
in the kit.
Q: Are there software and instructions can I get it?
A:You can get the software ,contact us.
Q: Whick type computer system can run its software?
A:The software only support the Windows system.
Q: What’s the laser’s lifetime?
A: The laser module have over 6,000 hours lifetime.
Q: What material can it engrave?
A:Wood, bamboo, plastic, paper, leather, rubber.
Q:What material can it cut?
A:cork wood, paper, thin leather.
Q:Can I use it to cut or engrave on metal?
A:It can not engrave or cut on any metal.
Q: Can I regulate the laser power or the laser power is adjustable?
A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.
Q: How long can the machine work continuously?
A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an
hour), then start work again. Long time work continuously with shorten the laser module
liftetime.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl
the software and the driver, power supply the machine,that’s all.
