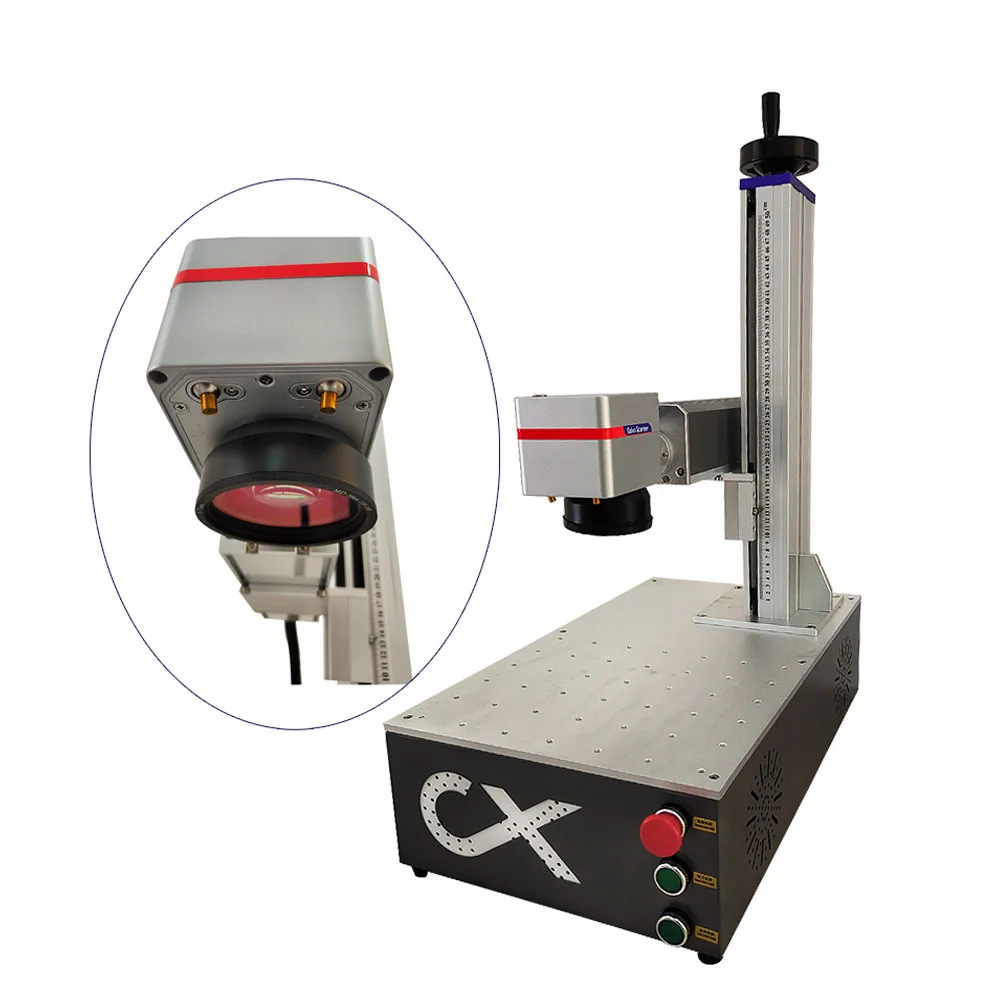

1064um Super-laser Max Raycus 20W 30W 50W CNC Fiber Laser Engraver Fiber Laser Nameplate Marking Machine with Align System

$7,722.16$12,936.16

SKU: 1005002483893183 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: Fiber Laser Engraving Machine
  • CNC or Not: CNC
  • Is Smart Device: No
  • Laser power: 20W/30W/50W
  • Working Area: 200x200mm(110x110mm or 300x300mm optional)
  • Cooling Mode: Air Cooling
  • Laser Wavelength: 10.64 um
  • Marking Depth: Max 0.3 mm
  • Marking Speed: Max 8000 mm/s
  • Marking Lines: 1-10 lines
  • Minimum Line Width: 0.01 mm
  • Minimum Character: 0.15 mm

Fiber Laser Nameplate Marking Machine 1064um Super-laser Max Raycus 20W 30W 50W Fiber Laser Engraver with Align System









The motherboard supports win10 and supports 32-bit 64-bit.

Technical Parameter

Model



Laser power

20W/30W/50W

Working  Area

200*200mm(110*110mm or 300*300mm optional)

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

≤0.3 mm

Marking Speed

≤8000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

Control Software

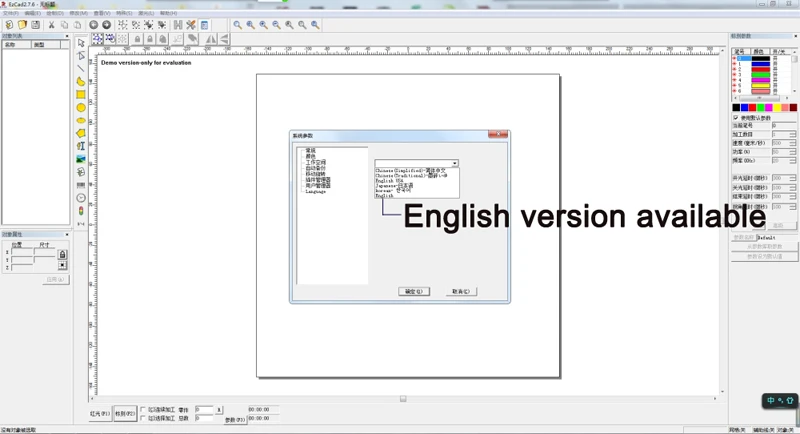

EZCAD ENGLISH Control Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

≤0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

≤ 90%, no fog

Dimensions(L*W*H)

95 x 78 x 55 cm

Power supply requirements

  220 V or 110V

Weight

  60KG

Warranty

24 months

1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

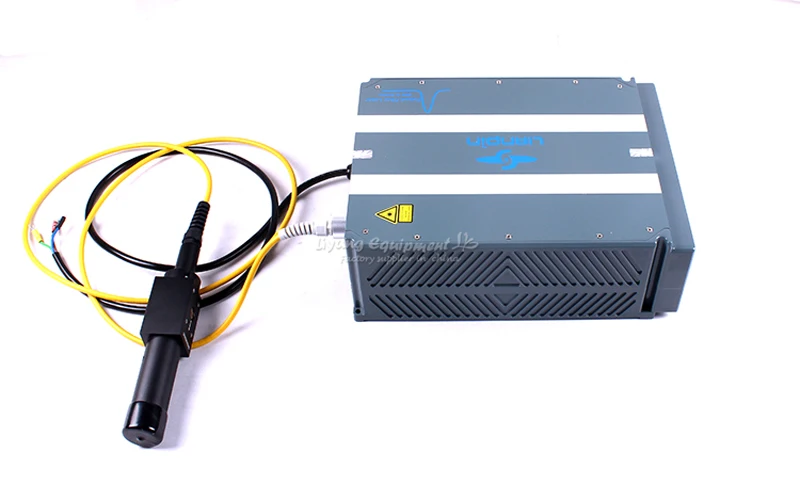

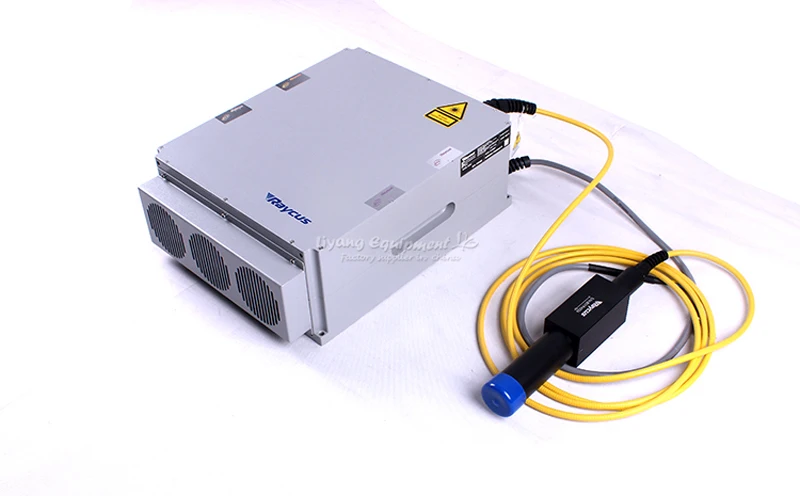

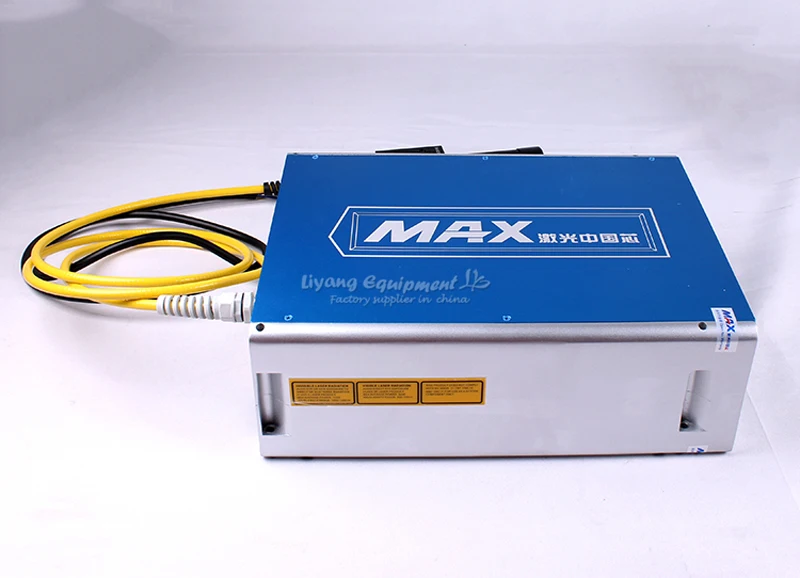

A;Fiber Laser brand:Lianpin/Raycus/Max

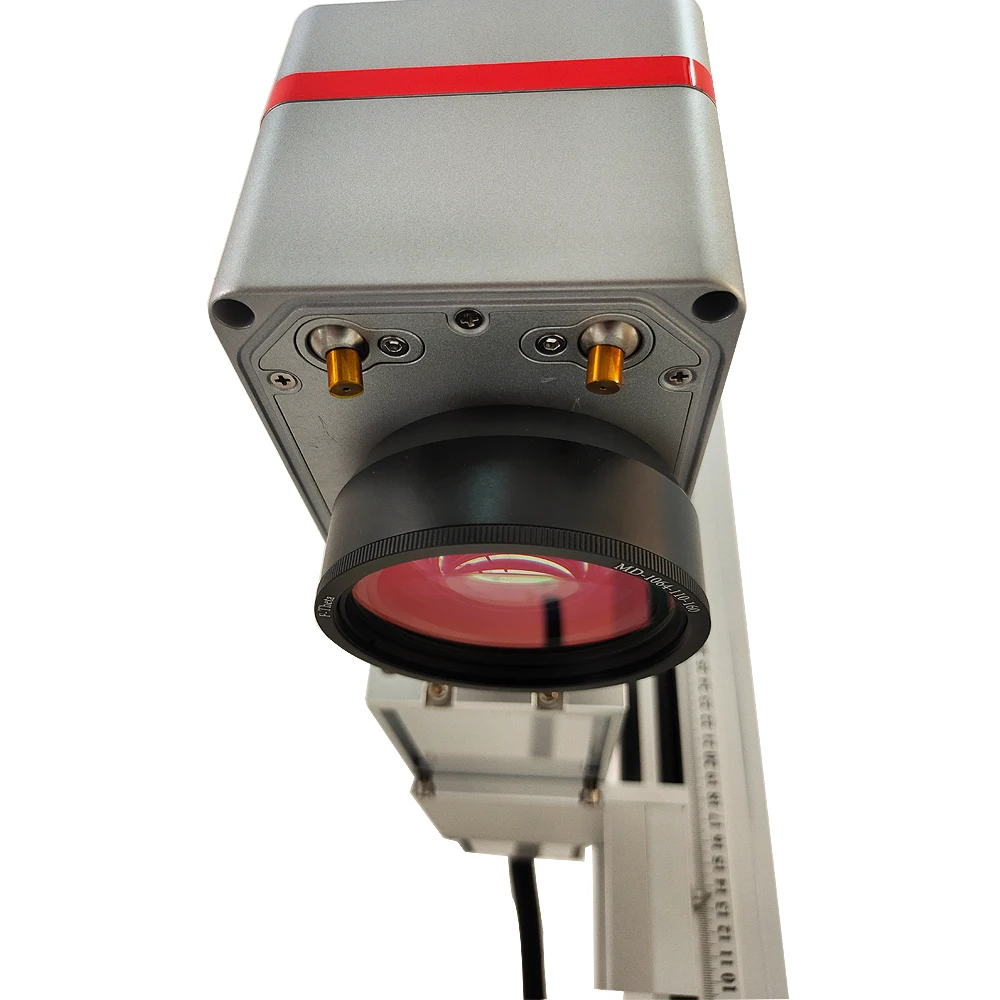

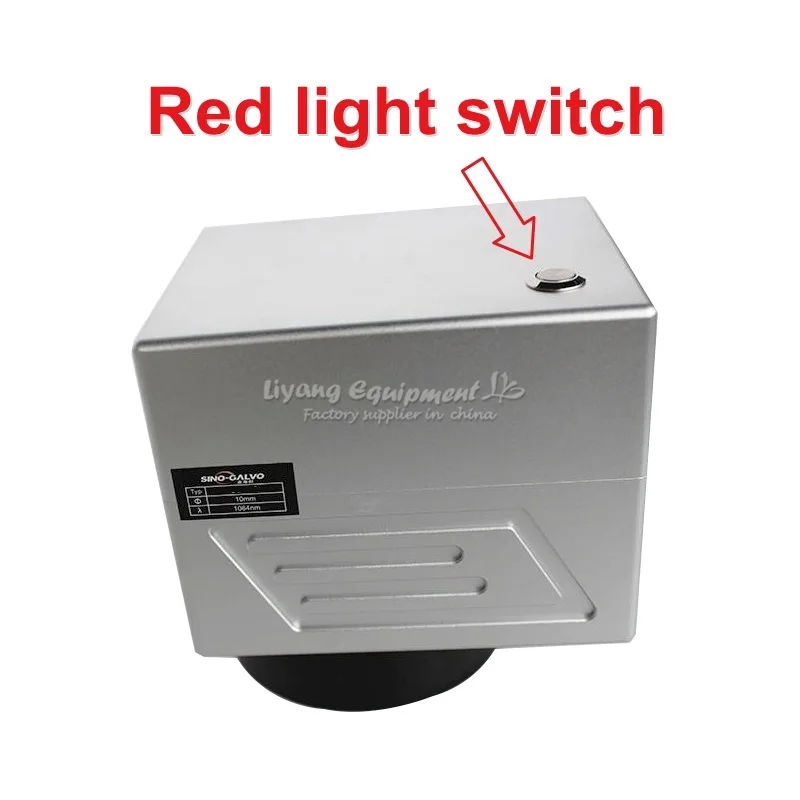

B; SINO-GALVO field mirror & galvanometer,

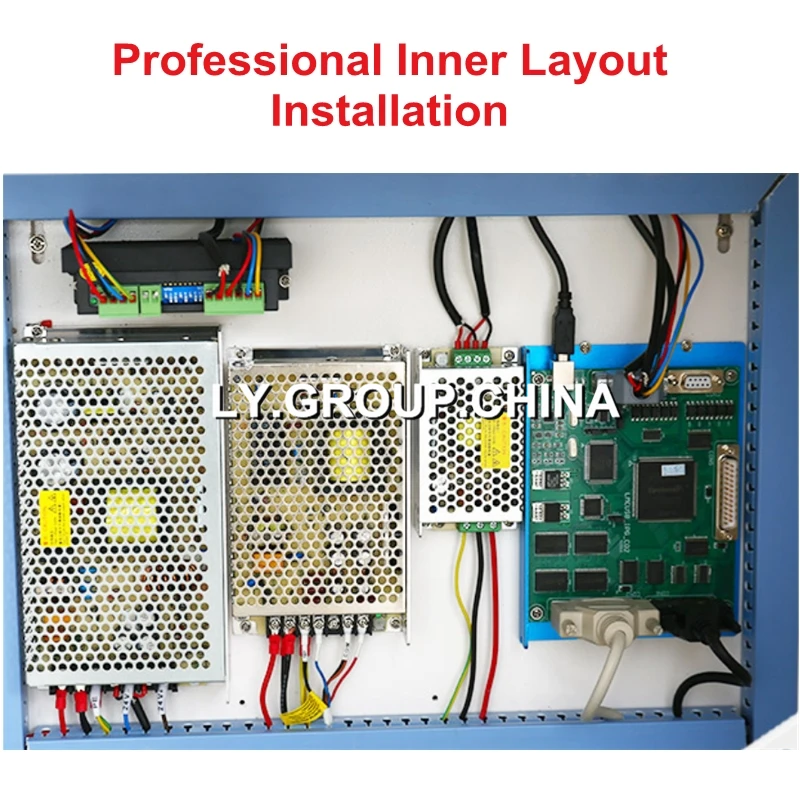

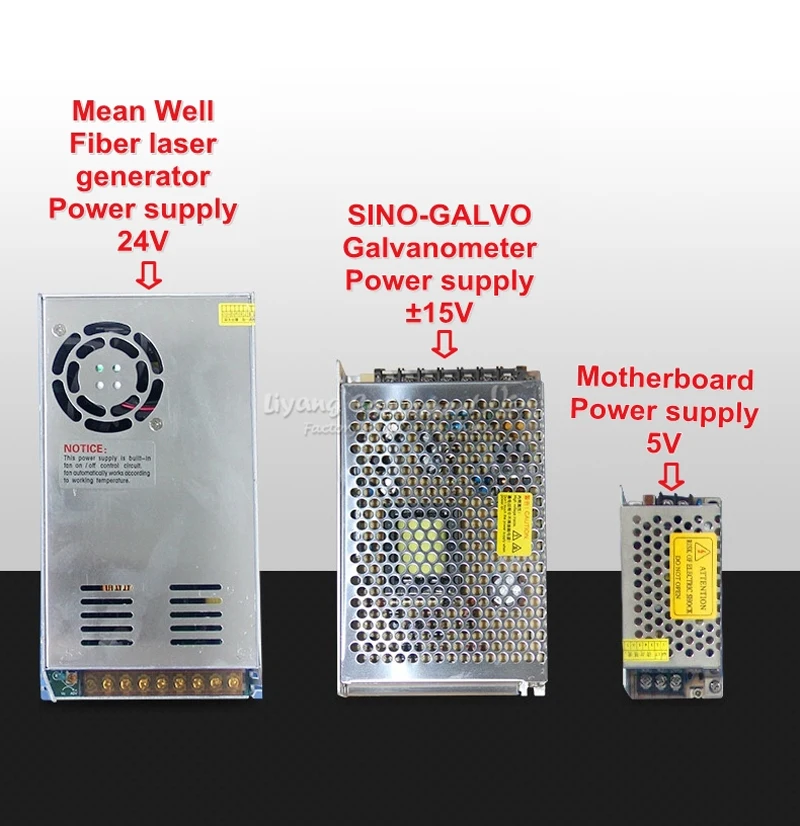

C; Taiwan Mingwei (MW) power supply,

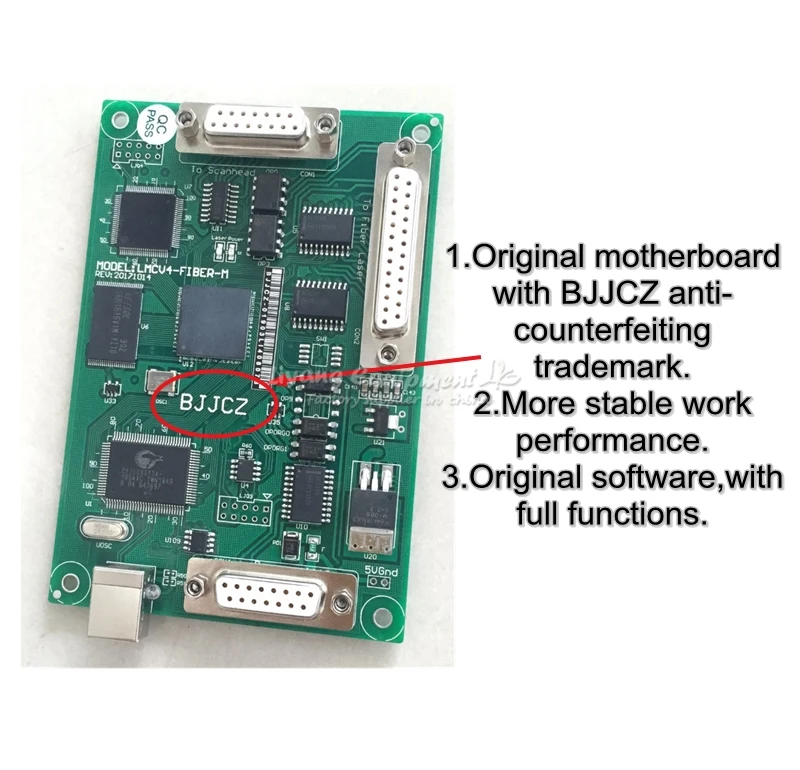

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

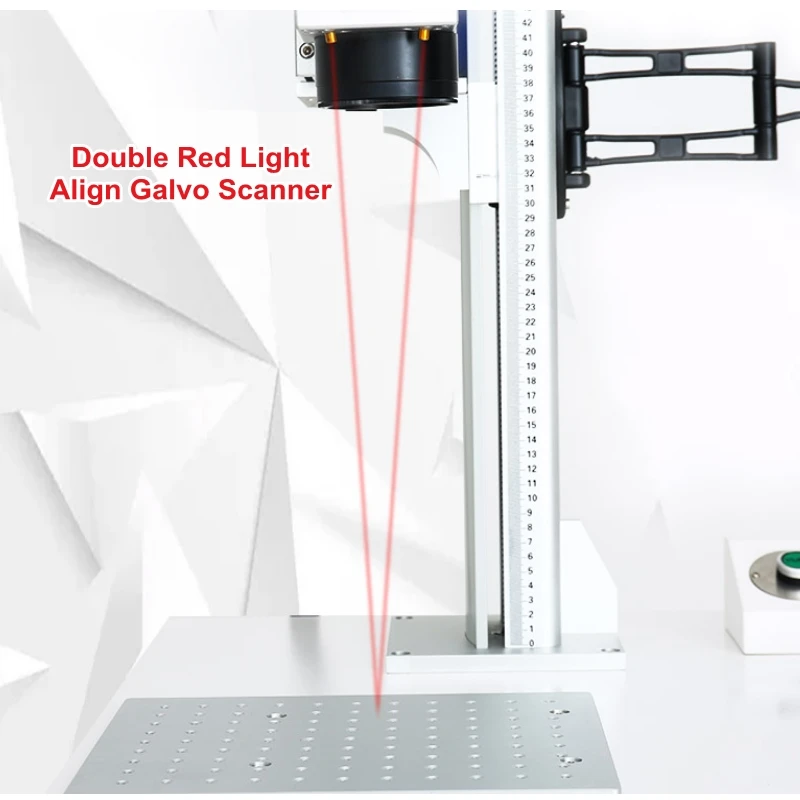

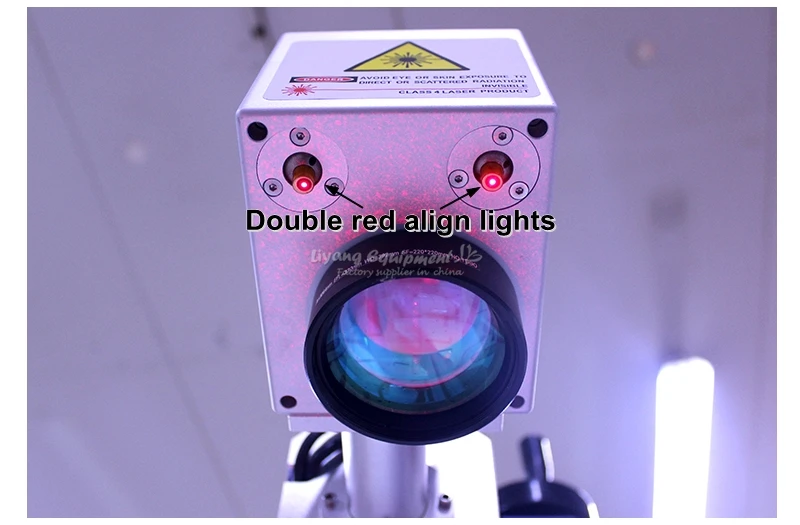

E: Double red lights assisted focusing align
F:Rotary axis (Optoinal)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!

4: Never let price become the only guiding factor for the company’s business marketing.
Expand your own marketing ideas and position high-quality markets.

5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!

Item pictures
