Description
PANFEE 40M Laser Tape Measure Sensor Module L2s With -1mm Accuracy
- DIY Supplies: Woodworking
- Certification: CE
- Model Number: L2s
- Place of Origin: Guangdong, China
- Brand Name: PANFEE
- Model: L2s-40
- Power Supply: 9-36VDC
- Current Consumption: ≤60mA
- Laser: 650nm, <2mW, red visible light
- Data Transmission: RS485
- Baud rate: 115200, default 38400
- Measuring Rate: 20Hz
- Range: 0.05 … 40m
- Resolution: 0.1mm
- Accuracy: ±(1mm)
Product Description
Model Number
|
Product Brief
|
L1
|
Supply voltage: 5VDC, Consumption current<100mA, Output: UART: [3.3V LLT]
|
L2
|
Supply voltage: 9 ~36 VDC, Consumption current<60mA, Output: RS485
|
L3
|
Supply voltage: 9 ~36 VDC, Consumption current<60mA, Output: Analog 4-20mA Current Loop
|
Company Profile
About MyAntenna
MyAntenna Co., Ltd, is a worldwide laser measurement and antennas solution provider.
We understand that antennas have vastly different requirements for different applications; we have the know-how on material selection and design methods to meet different requirements for different needs. We are well equipped for new antenna development including innovative antenna, NFC coil, RFID tags, active antennas and MIMO arrays in the wireless devices areas.
With over 10 years of hands-on experience on every object of weak reflection surface, we also offer complete distance sensor design capability from concept, prototyping, and production.
Our Advantages
Production Line
We have two product lines, which belong to different brands: PANFEE and MyAntenna.
Laser Measurment——PANFEE
PANFEE——High-performance sensors detect targets regardless of color, material or sheen from up to 40 meters away, straight-on or at any angle.
MyAntenna——With over 10 years of hands-on experience on every aspect of antennas and tags design, we offer complete antenna design capability
from concept, prototyping, and production to tests.
Testing Equipment
Antennas RD Equipment:Agilent Network
Analyzer, CMW500, Anechoic Chamber etc.
Analyzer, CMW500, Anechoic Chamber etc.
Laser Measurement RD Equipment:
Spectrum Analyze, Frequency Spectrum Analyze etc.
Spectrum Analyze, Frequency Spectrum Analyze etc.

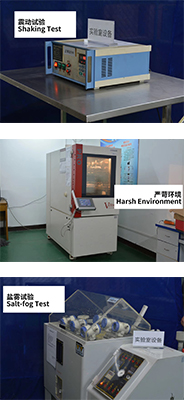

QC & Calibration Equipment: ESD Test, Lightning Surge, Shaking Test, EFT Test, Salt-fog Test etc.
