Description
- Brand Name: HKNA
- Origin: CN(Origin)
- DIY Supplies: Woodworking
- Certification: CE
- Warranty: 1 year
- Customized support: OEM, ODM
- Place of Origin: Tianjin, China
- Brand Name: Nohawk
- Model Number: LWNV7
- Size: 24x24x46mm
- Type of Laser: LD (Laser Diode)
- Laser Wavelength: 905±5nm (Safe for human eyes)
- Laser Indicator: 650nm
- Distance Measuring Range: 5-600/800/1200m
- Ranging Accuracy: ±1m
- Ranging Resolution: 0.1m
- Material of the Tube: Aluminum
- Receive Aperture: 18mm
- Power Consumption: 3.3V±0.3V
- Laser Angle: 4mrad
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:18px;padding:5px 10px;width:289px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:18px;padding:5px 10px;width:391px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-9{margin-bottom:0}#detail_decorate_root .magic-10{position:relative;width:100%}#detail_decorate_root .magic-11{margin-bottom:10px;overflow:hidden}

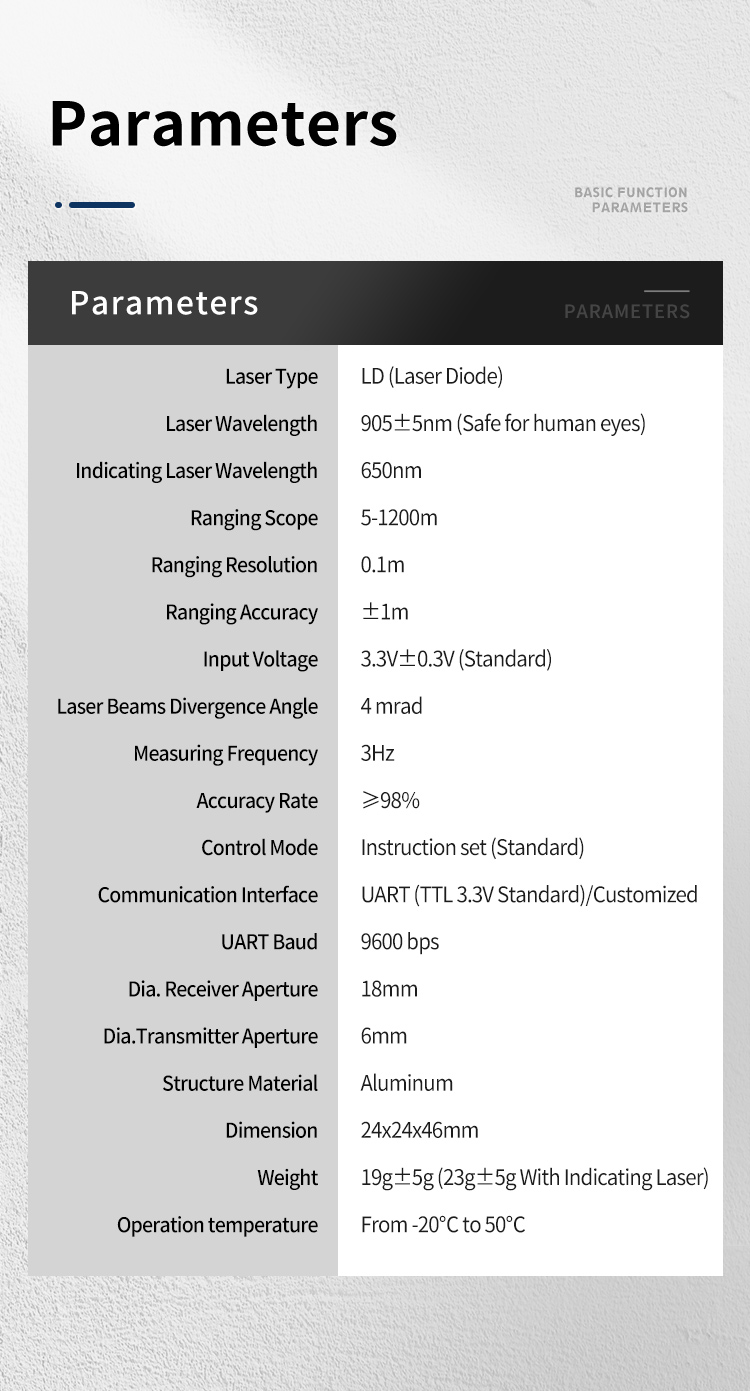

Specifications
|
Product Name
|
Laser Range Finder Module
|
|
Laser Type
|
LD (Laser Diode)
|
|
Laser Wavelength
|
905±5nm (Safe for human eyes)
|
|
Indicating Laser Wavelength
|
650nm (Subject to user guide)
|
|
Ranging Scope
|
5-600/800/1000/1200m
|
|
Ranging Resolution
|
0.1m
|
|
Ranging Accuracy
|
±1m
|
|
Input Voltage
|
3.3V±0.3V (Standard)
|
|
Laser Beams Divergence Angle
|
4 mrad
|
|
Accuracy Rate
|
≥98%
|
|
Control Mode
|
Instruction set (Standard)
|
|
Communication Interface
|
UART (TTL 3.3V Standard)/Customized
|
|
UART Baud
|
9600 bps
|
|
Dia. Receiver Aperture
|
18mm
|
|
Structure Material
|
Aluminum
|
|

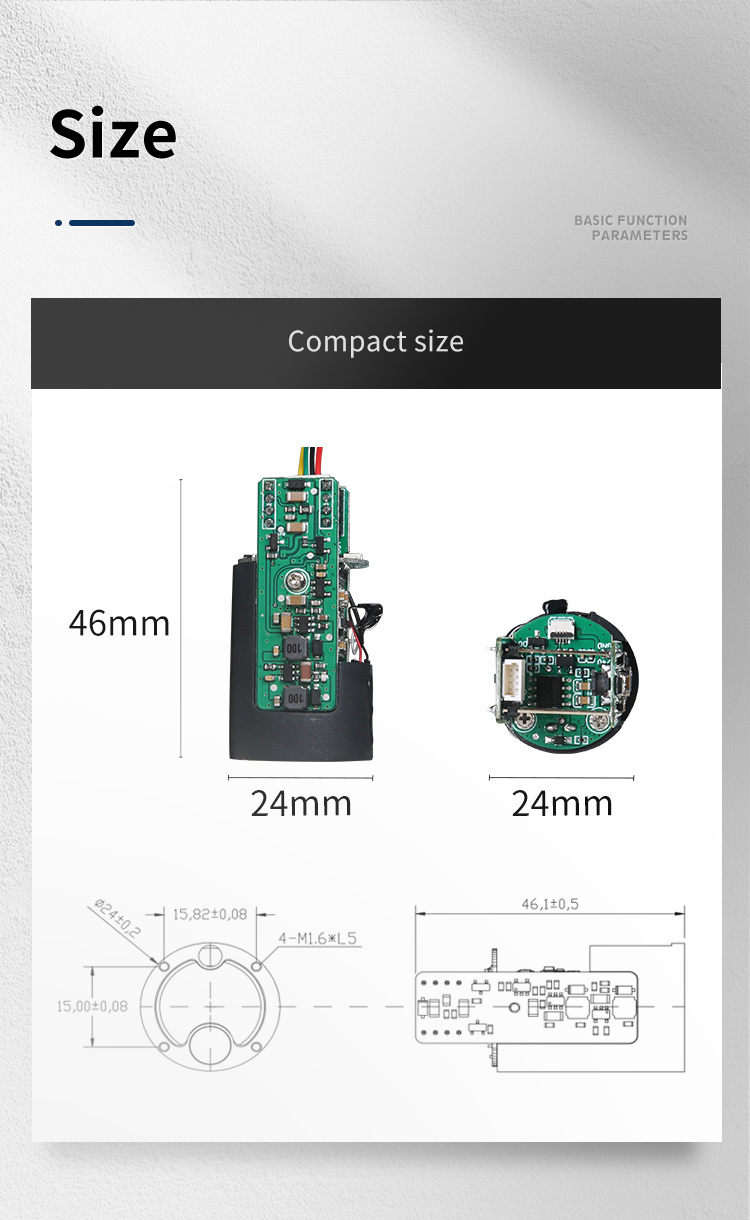

Dimension
|
24x24x46mm
|
|
Weight
|
19g±5g (23g±5g With Indicating Laser)
|
|
Operation temperature
|
From -20℃ to 50℃
|
Products Description

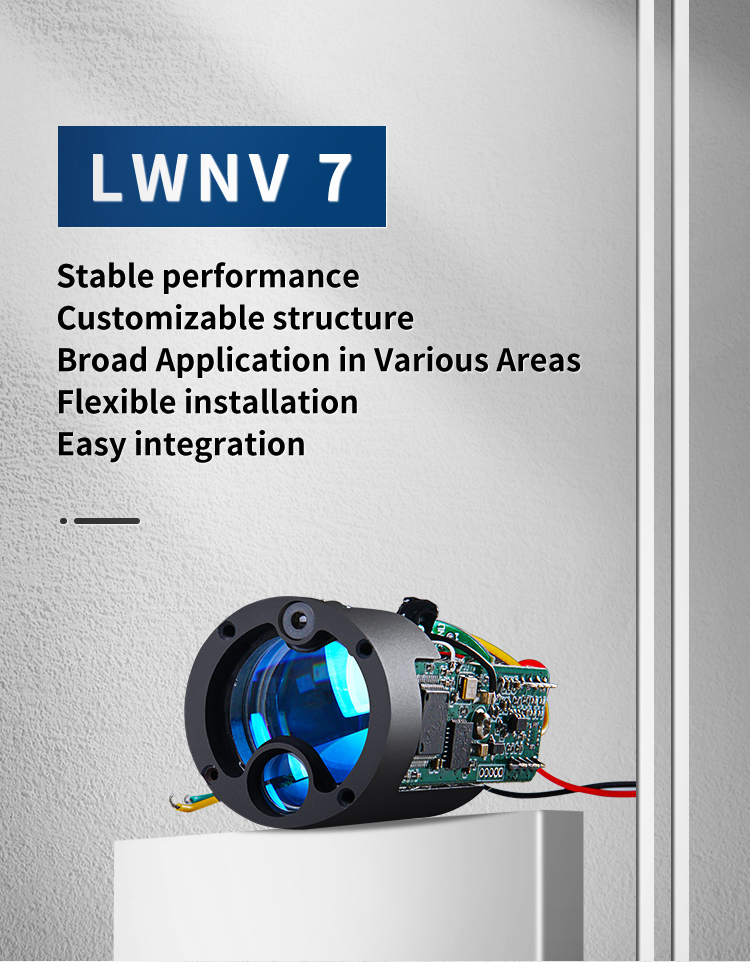

1. Features： Stable performance Broad Application in Various Areas Flexible installation Easy integration 2. Application： Hand-held devices (Night vision, Thermal imager, Telescope, Rifle scope, Laser illuminator, etc.) Various distance measurement cases (Aviation, police, railway, electric power, water conservancy, communication, environment, geology, construction, fire station blasting, agriculture, forestry, outdoor sport etc.) 3. Customized items: a. Indicating Laser b. Ranging Scope c. Communication Interface d. Structure & Photoelectric system
Company Profile
FAQ
1. Who are we? We are based in Tianjin, China, start from 2016, sell to North America(60.00%), Southeast Asia(10.00%),Mid East(10.00%), Eastern Asia(10.00%), Western Europe(10.00%). There are total about 51-100 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. What can you buy from us? Laser Rangefinder/ Thermal imager/ Night vision/ Telescope/Laser distance measuring module 4. Why should you buy from us not from other suppliers? Our company has many years of research and development design ability, integrated distance measurement, angle measurement, altimetry function, and developed the Bluetooth communication function of rangefinder and mobile phone breakthrough. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU, Express Delivery,DAF,DES； Accepted Payment Currency: USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
Contact Us
Tianjin Lookout Photoelectric Technology Co.,Ltd Sales Manager: Elena Zhang Email: sales15@lookoutlaser.com Mobile/Wechat/WhatsApp: 0086-19902054615
