How to choose a fiber laser marking machine? Raycus, JPT or MAX？

We focuslaser provide professional solution for fiber laser marking machines. We have all optional for you to choose.

Here are some differences of Raycus, JPT and Max.

Raycus is one of the most famous brand here in China which produce laser sources earliest in China.

JPT is famous for MOPA structure design if for fine engraving we can choose JPT.

Max is another brand and popular in China.

If we want engrave deep and has feel with finger touch same power you can choose a Raycus, if we want a fine engrave result，we can choose a JPT. If we think MAX is good choice we can choose a Max. But mostly customers choose Raycus or JPT.

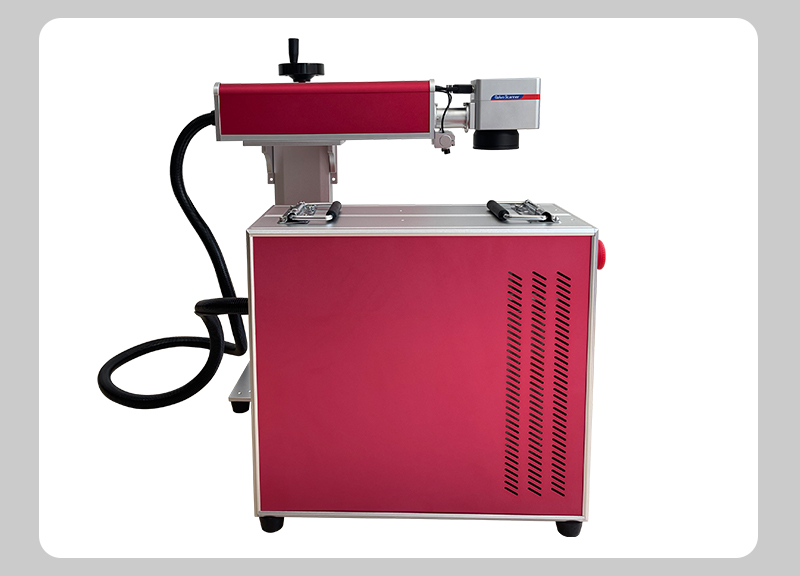

Data sheet/ Configuration

Model FLFB20/30/50BRJE

Laser Source Power 20W/30W/50W

Laser module Brand JPT/MAX

Scanner SINO TECH

Power supply Meanwell/Hengfu

F-lens F-theta

Pulse Repetition Rate JPT 1-600KHZ

Beam Quality ㎡ <1.1

Operating Voltage AC 110V/220V 50/60HZ 5A

Laser Wavelength 1064nm

Engraving Range 110*110/175*175/200*200/300*300mm

Repetition Precision ±0.003mm

Engraving Speed ≤7000mm/s

Minimum Line Width 0.01mm

Character Size 0.5-110mm

Cooling System Air Cooling

Ezcad control software 1 copy

Working Temperature Range 10-30℃

Driver for rotate Yes

Net Weight of Machine 40kg

Warranty 12 months

Gross Weight with packing 65KG
